MOTOR UNIT
MOTOR
SHIMANO EP8 MOTOR UNIT W/DU-EP800 DRIVE UNIT, SPEED SENSOR
BATTERY
Darfon 630Wh
FRAMESET
FRAME

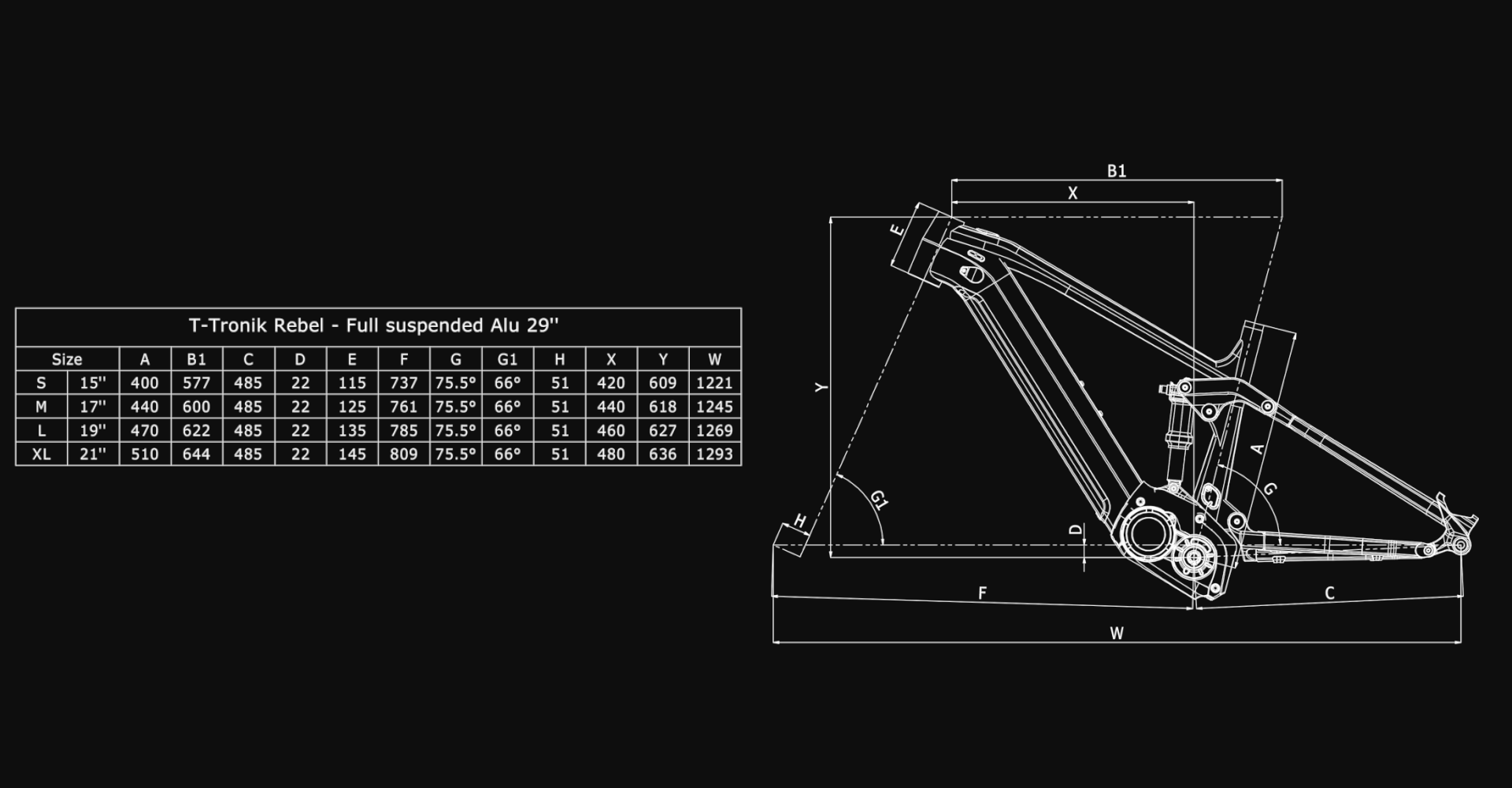

T-Tronik Rebel 140mm alu 6061 triple butted, 1.5" tapered HT, seatpost diam. 31,6mm, seat clamp diam. 34.9mm, PM 160mm dropout thru axle 12x148mm, internal cable routing, sizes 38-43-48-53cm
FORK
Rock Shox YARI RC 29B" Solo Air, 150mm
REARSHOCK
Rock Shox Deluxe Select+ RL
HEADSET
Fsa Orbit 1.5 ZS
DRIVETRAIN
SHIFTERS
Shimano Deore SL-M6100-IR 1x12sp
REAR DERAILLEUR
Shimano XT RD-M8100-SGS Shadow Design + 12sp
CRANKSET
Fsa Forged Alu crank length:165 mm
BOTTOM BRACKET
Included w/motor unit
CHAIN
Shimano CN-M6100, 12sp
CASSETTE
Shimano CS-M7100-12, 10-51T
BRAKES
BRAKES
Shimano BR-M6120
BRAKELEVERS
Shimano BL-M6100
ROTOR
Shimano SM-RT64 Front & RT-EM600 Rear, diam. 203mm
WHEELS
WHEELS
WTB KOM Trail i30 TCS 2.0 29"
REARHUB
Shimano FH-MT410-B
FRONTHUB
Shimano HB-MT400-B
TIRE
Kenda Hellkat 29x2.6
COCKPIT
STEM
Tec Obvius, 0°, 1.1/8", diam. 31.8mm, ext: 55mm
HANDLEBAR
Tec Obvius rise, AL6061-T6 double butted, width 780mm, diam. 31.8mm, 15mm rise, 9° backsweep
GRIPS
T-One Rock T-GP34
SADDLE
SEATPOST
Dropper seatpost, diam 31.6mm, internal remote cable routing w/remote, travel: 100mm-15``, 125mm-17``, 150mm-19/21``
SADDLE
Velomann 1285URN, manganese rail, lenght 277mm x width 144mm
