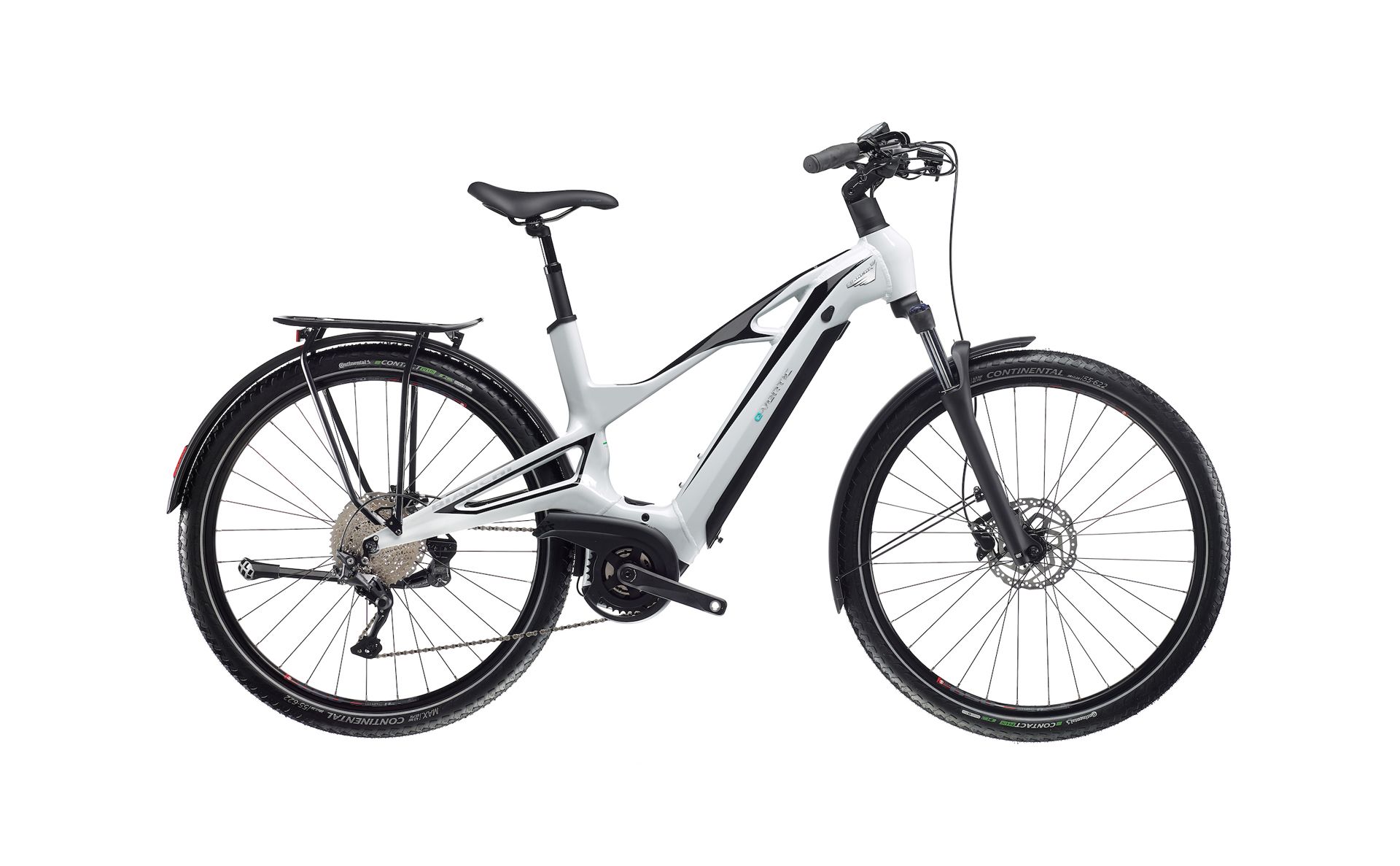

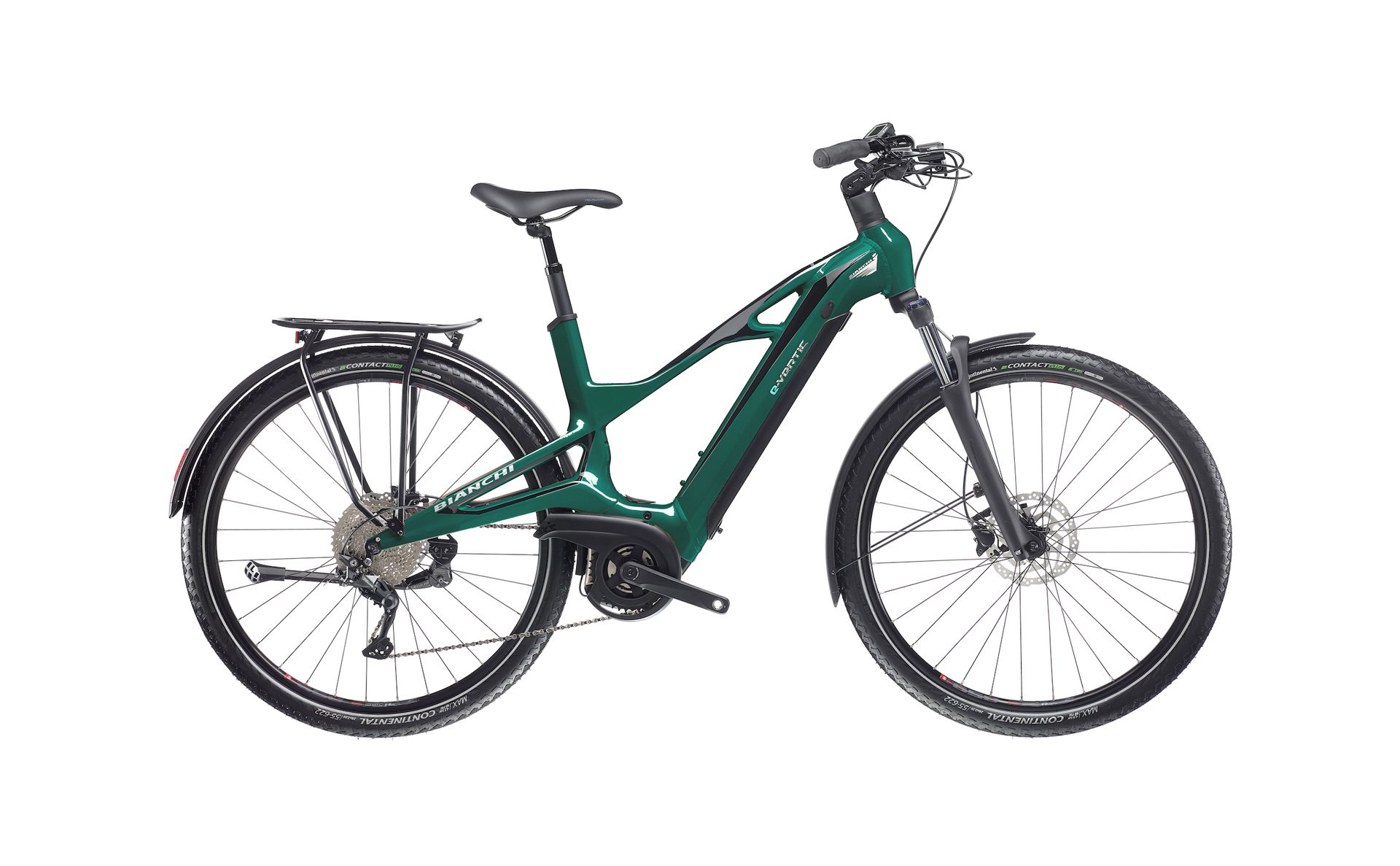

Concebida para todos os tipos de viagens: da cidade ao campo, desfrute da viagem com a bicicleta de turismo e-Vertic T-Type.
Andar em estradas pavimentadas e não pavimentadas com desníveis inferiores a 15 cm.
MOTOR
Bosch Active Plus motor unit
BATTERY
Powertube 400wh integrated battery
FRAME
e-VERTIC T-Type Step-through ALU sizes: 43, 48, 53 - 9x135 mm quick release dropouts - Post mount 180 disc brake type
FORK
Suntour 29", travel 100mm, COIL w/Preload adjuster, CR plating, Pitch 130 mm, 1-1/8"(TS), OLD 9-100, max rotor 180, post mount 160mm direct
HEADSET
Acros 1,5"" top / 1,5"" bottom - bearings - integrated cable routing 1 1/8“ crown race for ZS56 Head tube cover
SHIFTERS
Sram X5 TRIGGER REAR 9sp BLK 2200MM CABLE
REAR DERAILLEUR
Sram RD X7 SHORT CAGE ALUMINUM 9sp
CRANKSET
FSA E-Bike Diecast Crankset - CK220 Gen 3 / 170mm / Die cast aluminum FSA Direct Mount Steel Chainring - 38T / w/HT Steel / ED / C.L. 50mm Bosch Gen3 Bolt - Bosch Gen3 crank bolt Black
BOTTOM BRACKET
included in the motor
CHAIN
KMC e10S NPBK 1/2" x 11/128"
BRAKES
Shimano, BL-MT200, BR-MT200, BLACK, SM-MA-F180P/P2, RESIN PAD, 1000MM HOSE / 1700 HOSE
ROTOR
Shimano, M 180MM, W/LOCK RING, FOR RESIN PAD ONLY
REARHUB
Shimano, FOR CENTER LOCK ROTOR, 32H 8/9/10-SPEED,OLD:135MM,AXLE:146MM,QR:170MM, W/O ROTOR MOUNTCOVER
FRONTHUB
Shimano, 32H OLD:100MM AXLE:108MM, FOR CENTER LOCK ROTOR, QR:133MM W/O ROTOR MOUNTCOVER
TIRE
Continental CONTACT Urban
STEM
Velomann, integrated cable routing, Barbore 31,8 mm, Extension 90 mm
HANDLEBAR
Velomann, 31.8*630 / Rise 34mm / Back Sweep 41°
GRIPS
Herrmans, 130mm/130mm, d.22mm
SEATPOST
Velomann LT2 31.6*350 travel 50mm
SADDLE
Velomann, black cover 8067 size 270x162mm, 385gr.
MUDGUARDS
Racktime Alumee 62mm, 28", AL 6063-T4, black
KICKSTAND
Bianchi Custom modello KING EVO XL w/o screw
REARCARRIER
Racktime, 28", Max load 25Kg, black, IMM mounting
FRONTLIGHT
Lezyne, 65 lux, Center mount, 140cm cable w/ Bosch connector, w/ reflector
REARLIGHT
Trelock Ebike6-12V
E-Vertic T-Type step through | |||||||||||||
SIZE | A | B1 | C | D | E | F | G | G1 | H | I | X | Y | WB |
MD | 430 | 599 | 475 | 45 | 120 | 723 | 74.5° | 67° | 46 | 527 | 426 | 625 | 1195 |
LG | 480 | 620 | 475 | 45 | 130 | 745 | 74.5° | 67° | 46 | 527 | 444 | 634 | 1217 |
XL | 530 | 638 | 475 | 45 | 145 | 766 | 74.5° | 67° | 46 | 527 | 459 | 648 | 1237 |
