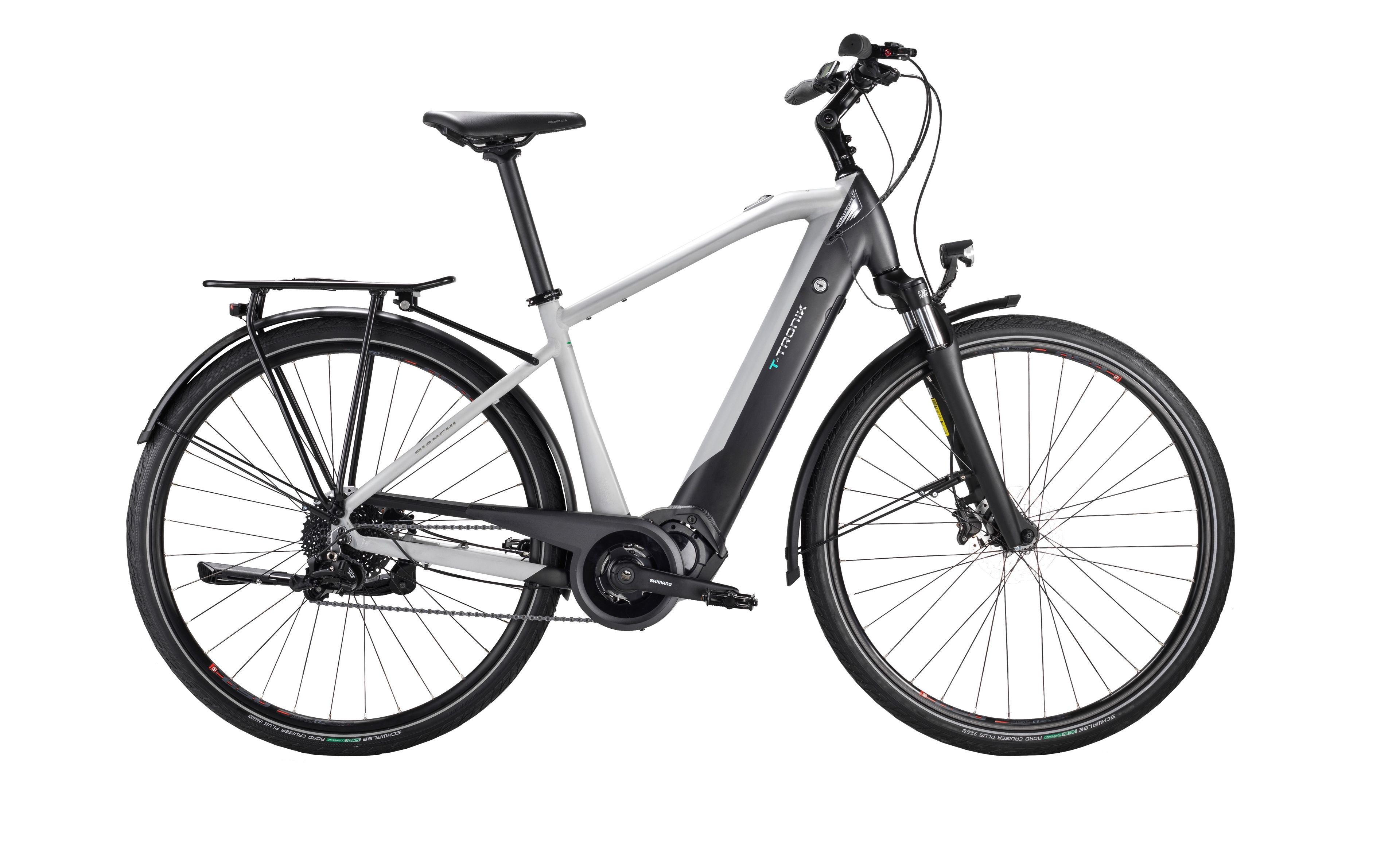

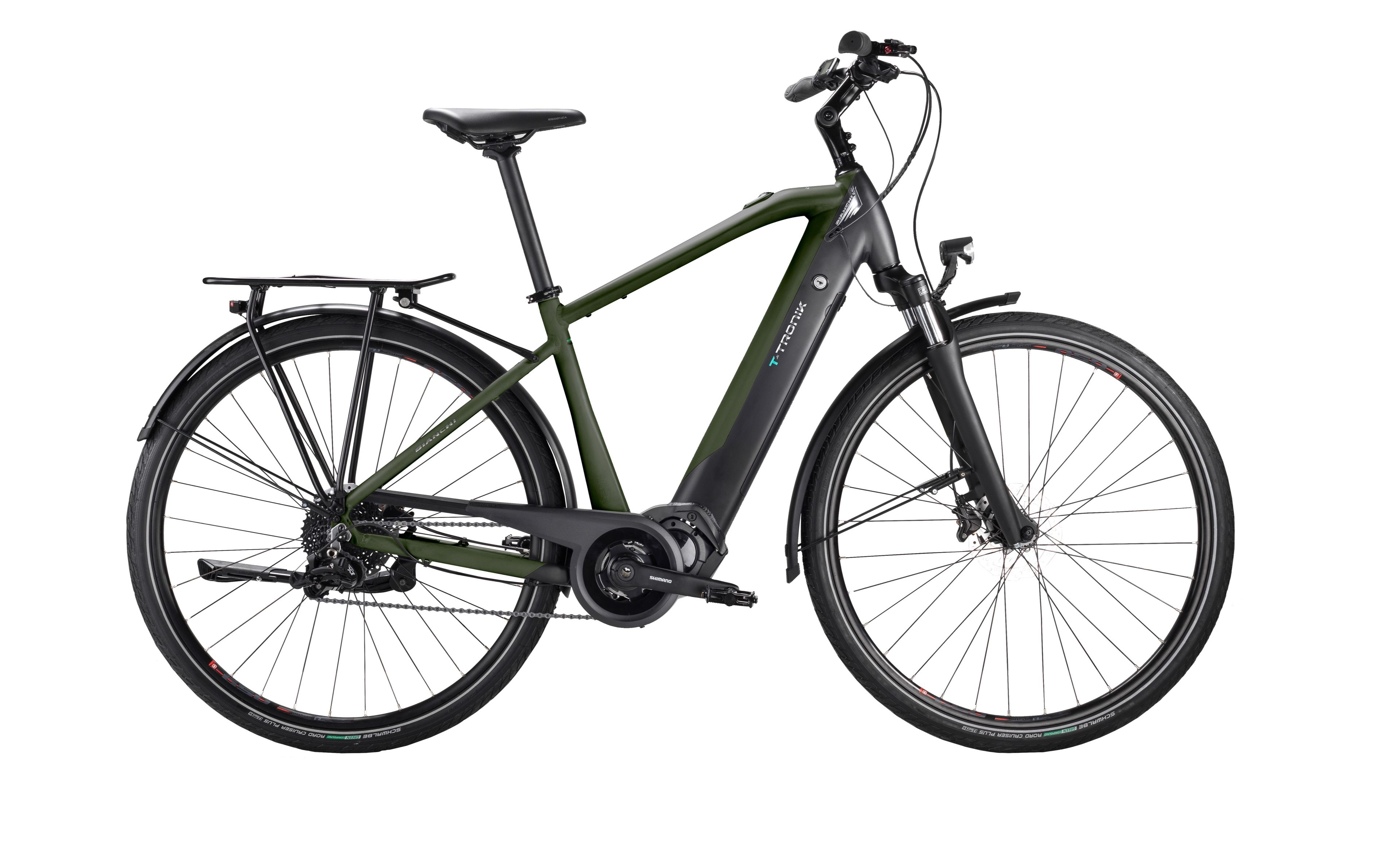

A imagem apresentada é apenas indicativa.
Os componentes e detalhes gráficos podem diferir do modelo real.
Preço de referência, pode sofrer alteração na cotação.
Quem procura uma bicicleta versátil para uma vida ativa, tanto durante a semana como nas escapadelas de fim de semana.
Andar em estradas pavimentadas e não pavimentadas com desníveis inferiores a 15 cm.
MOTOR
Shimano E6100 250W, torque 60Nm
BATTERY
417Wh Phylion integrated battery
FRAME
T-Tronik T-Type Frame 28" Tourer, Suspended fork geometry, Alu PG 6061 32/37 Max shell, disc brake, O.L.D.135mm, D/T battery, size: 47/51
FORK
Suntour SF15-NEX-E25-DS-700C-63 PostMount disc brake, 1.1/8"", travel 63mm, compatible with fender, OLD 100mm, Quick relase type
HEADSET
FSA 1.1/8" 44H-N10P
SHIFTERS
Sunrace DLE903N, 9sp, w/ optical gear
REAR DERAILLEUR
Sunrace, 9sp, max 42T
CRANKSET
Shimano FC-E6100, 170MM CHAINRING, SM-CRE61, 38T, FOR CHAIN LINE 46.5MM
BOTTOM BRACKET
included in the motor
CHAIN
KMC E9s EPT
BRAKES
"Radius, BH-M960, 900mm hose length, Direct Mount, w/adapter Radius BH-M960, 1700mm hose length, Direct Mount, w/ J-kit, w/ adapter"
ROTOR
Radius Rotors RT900, 160mm, center lock
TIRE
Chaoyang E-Liner City 700x45C, 60tpi
STEM
Velomann, 28,6 mm steerer ID Clamp, 31,8 mm barbore
HANDLEBAR
Velomann 31.8/680mm, RISE 20MM, SWEEP 15°
GRIPS
Herrmans GRIPset Oxy DD29BR/BL 130mm/130mm black-black,d.22mm
SEATPOST
Velomann, lenght 350mm for SM size and 400mm for MD, diam.31,6mm, 0mm seatback, Al2014 shaft + alloy head
SADDLE
Selle Royal, Essenza
PEDALS
VP black aluminum, w/reflector
MUDGUARDS
SKS Mudguard profile A60S, internal cable routing on the rear mudguard, secuclip/esc clip, protector on front and rear tail, protector on front mudguard
KICKSTAND
Ursus R81 WAVE REAR, 28" - 40mm fixing plate (load 35kg)
REARCARRIER
Racktime, RT Eco 2.0, 28", black w/ roundstay 350mm
FRONTLIGHT
Herrmans Mr GO
REARLIGHT
Axa Juno
SIZE | A | B1 | C | D | E | F | G | G1 | H | I | X | Y | WB |
M | 470 | 550 | 463 | 60 | 165 | 635 | 74.5° | 70° | 45 | 468 | 374 | 639 | 1092 |
L | 510 | 565 | 468 | 60 | 170 | 650 | 74.5° | 70° | 45 | 468 | 387 | 644 | 1106 |
