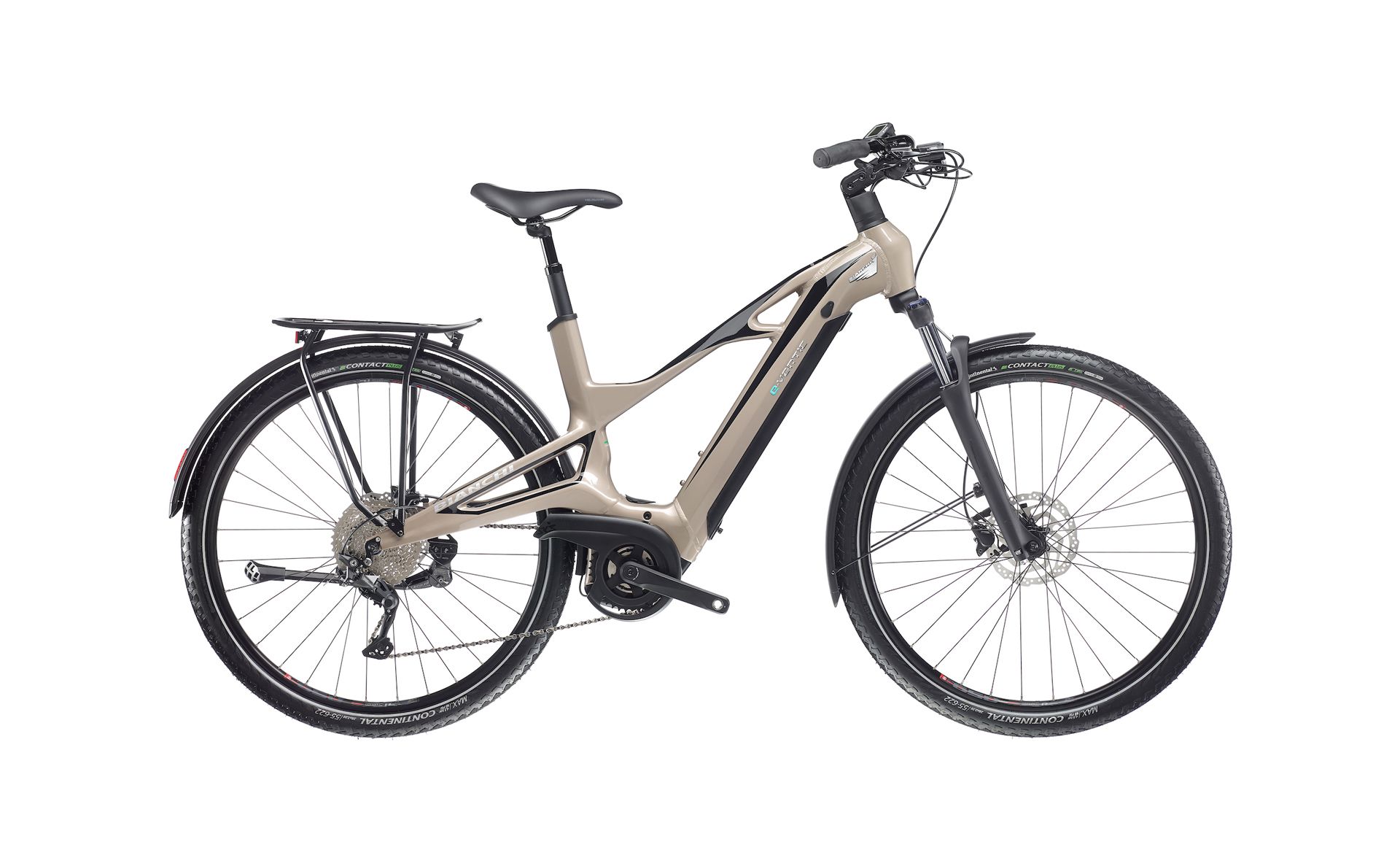

Concebida para todos os tipos de viagens: da cidade ao campo, desfrute da viagem com a bicicleta de turismo e-Vertic T-Type.
Andar em estradas pavimentadas e não pavimentadas com desníveis inferiores a 15 cm.
MOTOR
Bosch Performance Line, 250W, 65Nm, Purion display
BATTERY
Bosch Powertube 500Wh integrated battery
FRAME
e-VERTIC T-Type Step-through ALU sizes: 43, 48, 53 - 9x135 mm quick release dropouts - Post mount 180 disc brake type - Internal cable routing in steerer - 625Wh compatible
FORK
Suntour NVX30 NLO DS 29", escursione 100 mm, 1,1/8" HT diritto, senza QR 9x100, rotore minimo 160 mm, rotore massimo 180 mm, steli da 30 mm
HEADSET
Acros Headset 1,5" top / 1,5" - integrated cable routing
SHIFTERS
Shimano, SL-M4100-R, DEORE, 10-SPEED
REAR DERAILLEUR
Shimano, RD-M4120, DEORE, SGS 10/11-SPEED
CRANKSET
FSA CK-220, Alloy, 170mm FSA Steel Chainring 38T
BOTTOM BRACKET
included in the motor
CHAIN
KMC e10S NPBK
BRAKES
Promax, DSK-925
ROTOR
Promax DSK-925, 180mm, center lock
WHEELS
EBIKE 650 TR 28" - ETRTO 622 x 23C, 32hole, height 18mm
REARHUB
Shimano, FH-TX505-8, 32H 8/9/10/11-SPEED,OLD:135MM,AXLE:146MM,QR:170MM
FRONTHUB
Shimano, HB-TX505,32H OLD:100MM AXLE:108MM, QR:133MM
TIRE
Continental 55-622 eContact Plus
STEM
Velomann aluminium adjustable, integrated cable routing, Barbore 31,8 mm, Extension 90 mm
HANDLEBAR
Velomann 31.8/680mm, RISE 20MM, SWEEP 15°
GRIPS
Herrmans GRIPset Oxy
SEATPOST
Velomann travel 50mm, suspension seatpost 300mm for size 43 350mm for sizes 48, 53
SADDLE
Velomann, size 270x162mm, 385gr.
PEDALS
VP, axle 7mm boron steel, EPB system, size 112x83,3mm, reflector included
MUDGUARDS
Racktime Alumee 62mm, 28"
KICKSTAND
Bianchi Custom
REARCARRIER
Racktime, 28", Max load 25Kg
FRONTLIGHT
Lezyne, 65 lux
REARLIGHT
Trelock RearLight MudGuard Ebike6-12V
E-Vertic T-Type step through | |||||||||||||
SIZE | A | B1 | C | D | E | F | G | G1 | H | I | X | Y | WB |
MD | 430 | 599 | 475 | 45 | 120 | 723 | 74.5° | 67° | 46 | 527 | 426 | 625 | 1195 |
LG | 480 | 620 | 475 | 45 | 130 | 745 | 74.5° | 67° | 46 | 527 | 444 | 634 | 1217 |
XL | 530 | 638 | 475 | 45 | 145 | 766 | 74.5° | 67° | 46 | 527 | 459 | 648 | 1237 |
