Motor Unit

Motor

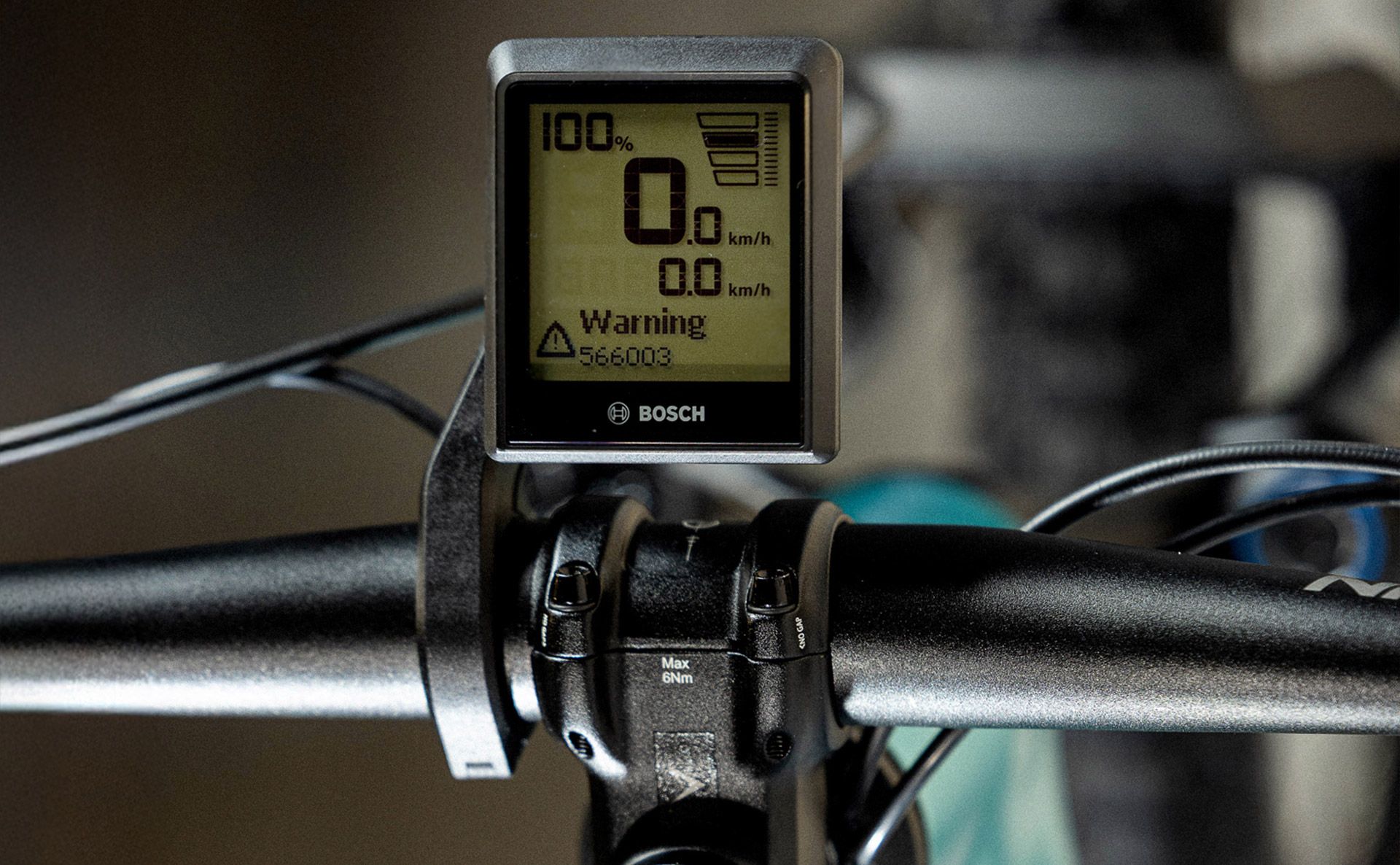

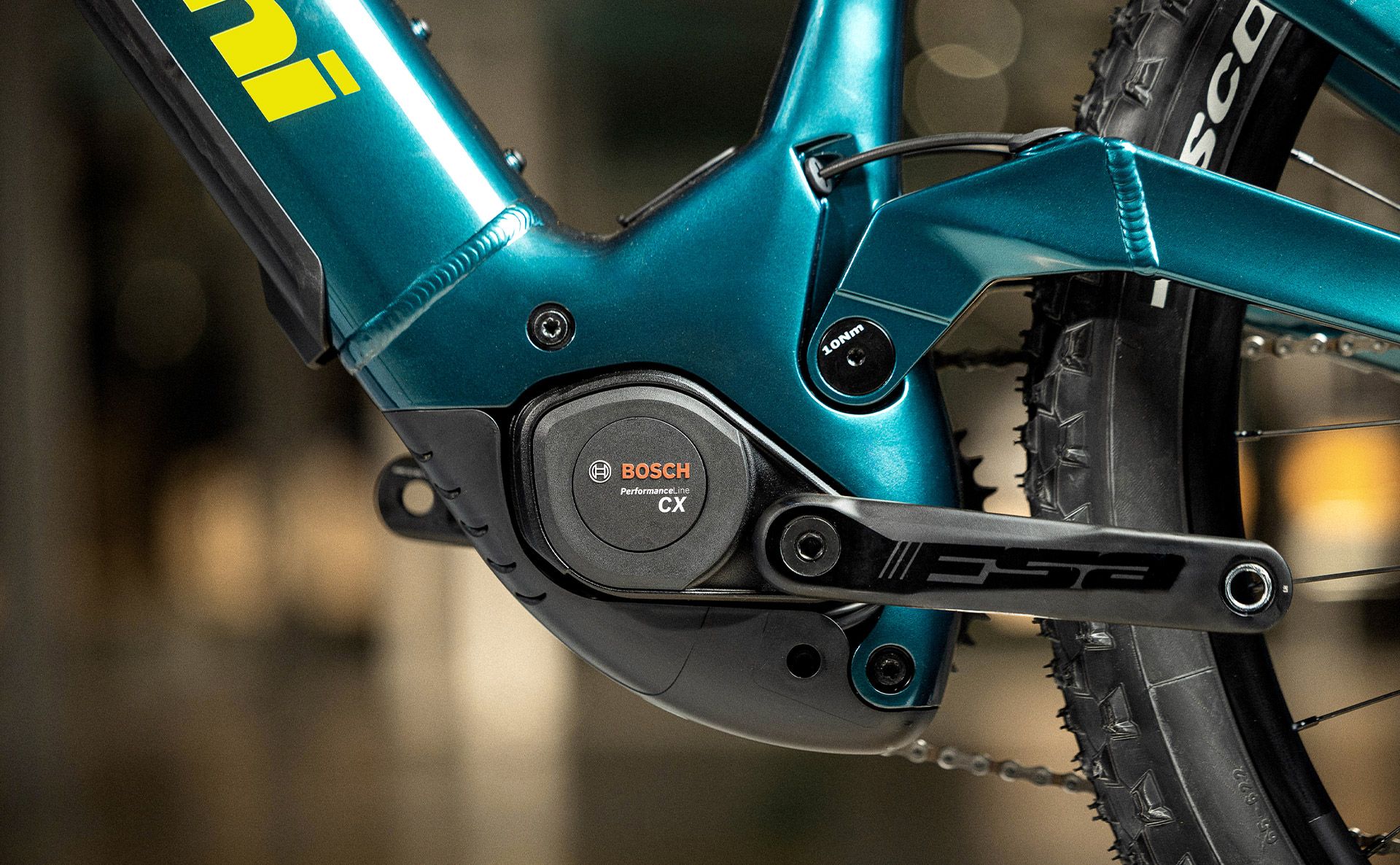

Bosch Performance Line CX BDU3840 - Intuvia 100

Battery

Bosch Powertube 800 Wh

Frameset

Frame

Bianchi e-Vertic FX, aluminium, 12x148 mm rear thru axle, Post mount 180 disc brake type, Front travel 150 mm, Rear travel 140 mm, Internal cable routing in steerer, 800 Wh battery compatible, sizes 40-44-48-53

Fork

RockShox Psylo Silver RC 29", 150 mm travel, Steerer tube 1,5" tapered, 35 mm stanchions, Maxle Stealth 15x110 Boost axle, Rotor: minimum 180 mm, maximum 220 mm, 44 mm rake

RearShock

RockShox Deluxe Select, 210/52.5 mm for size SM, 210/55 mm for sizes MD, LG, XL, Debonair Progressive, Damper Type R, Rebound tune R55, Compression tune C34, External rebound adjustment

Headset

FSA 1.5" for tapered fork steerer, Dual side internal cable routing, Head Block system

Drivetrain

Shifters

Sram SX Eagle, single click

Rear Derailleur

Sram SX Eagle, 12 sp

Crankset

FSA CK-745/IS, Aluminium forged - 165 mm Crank length: 165 mm

Chain

Sram SX Eagle, 12 sp

Cassette

Sram PG-1210 Eagle, for HG body, 11-13-15-17- 19-22-25-28-32-36-42-50T

Brakes

Brakes

Sram DB4, 4 pistons calipers, mineral oil

BrakeLevers

Sram DB4, included in the brake

Rotor

FRONT: Sram Centerline, 200 mm / REAR: Sram Centerline, 200 mm

Wheels

Wheels

Velomann Rim: V22M, 622x28, 32 hole, Tubeless ready; Hubs: Shimano TC500 thru axle

Tire

Pirelli Scorpion 29x2.6 E-MTB M, 60TPI

Cockpit

Stem

Velomann 1" 1/8, 35 mm barbore Size: 50 mm

Handlebar

Velomann Aluminum, Rise 18 mm, Barbore 35 mm, Size: 780 mm

Grips / Extensions

Herrmans Luna lock 130 mm

Saddle

Seatpost Clamp

Bianchi Custom

Seatpost

Velomann Diameter 31.6 mm, Internal cable routing length: 100 mm - SM, 125 mm - MD, 150 mm - LG/XL

Saddle

Velomann Velomann Gnd Full-fit Start Up, Carbon-steel rail, 262 mm x 145 mm
