Motor Unit

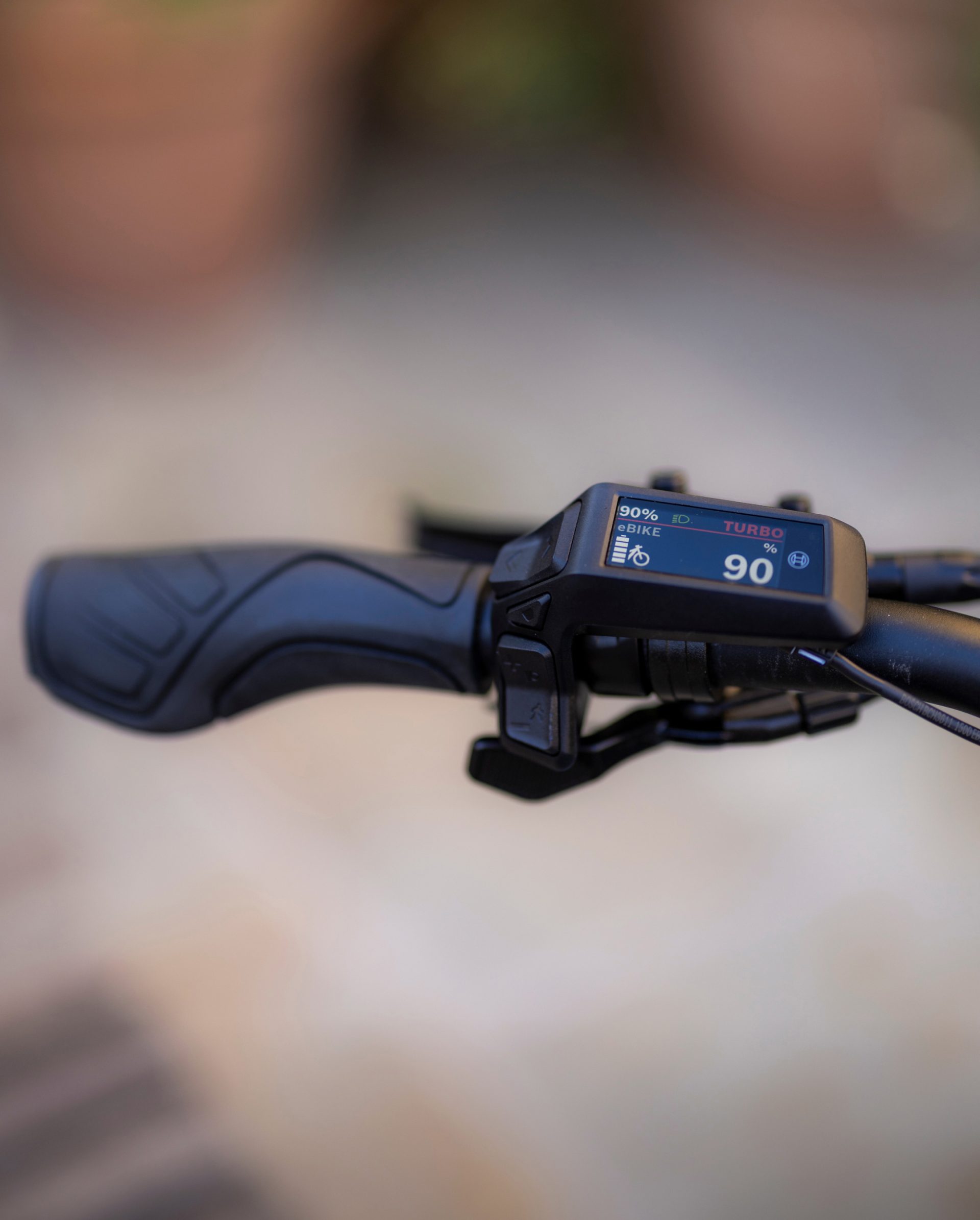

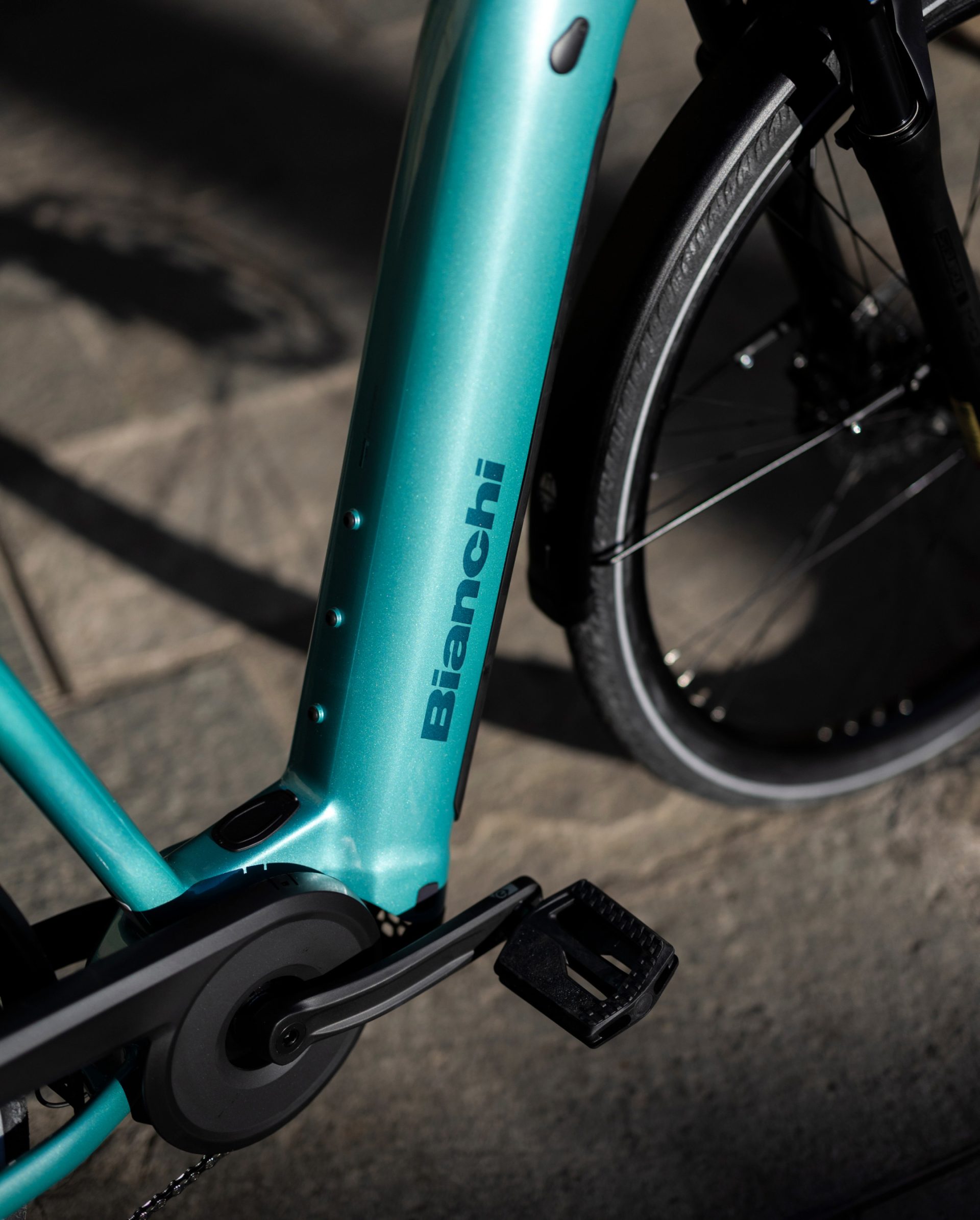

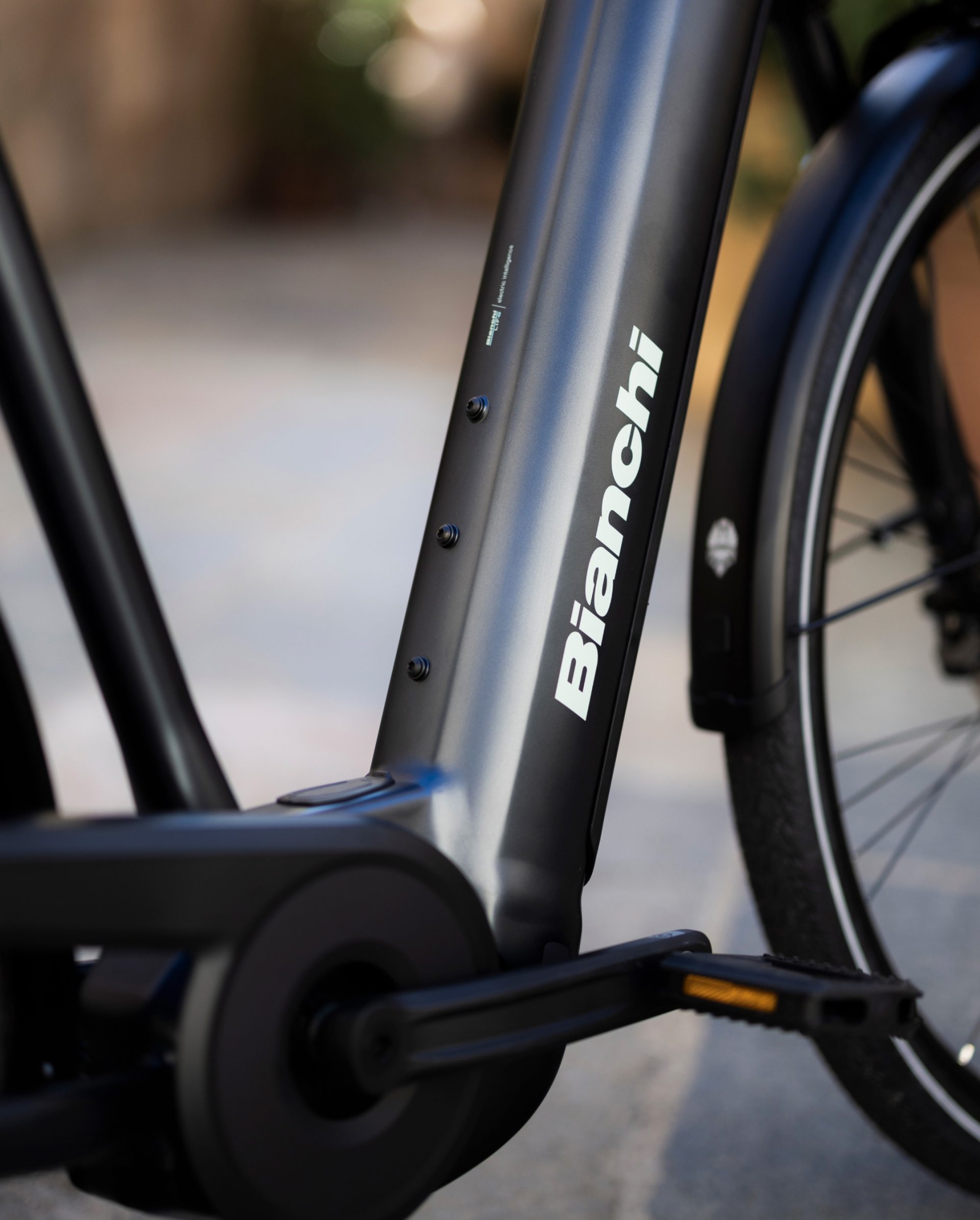

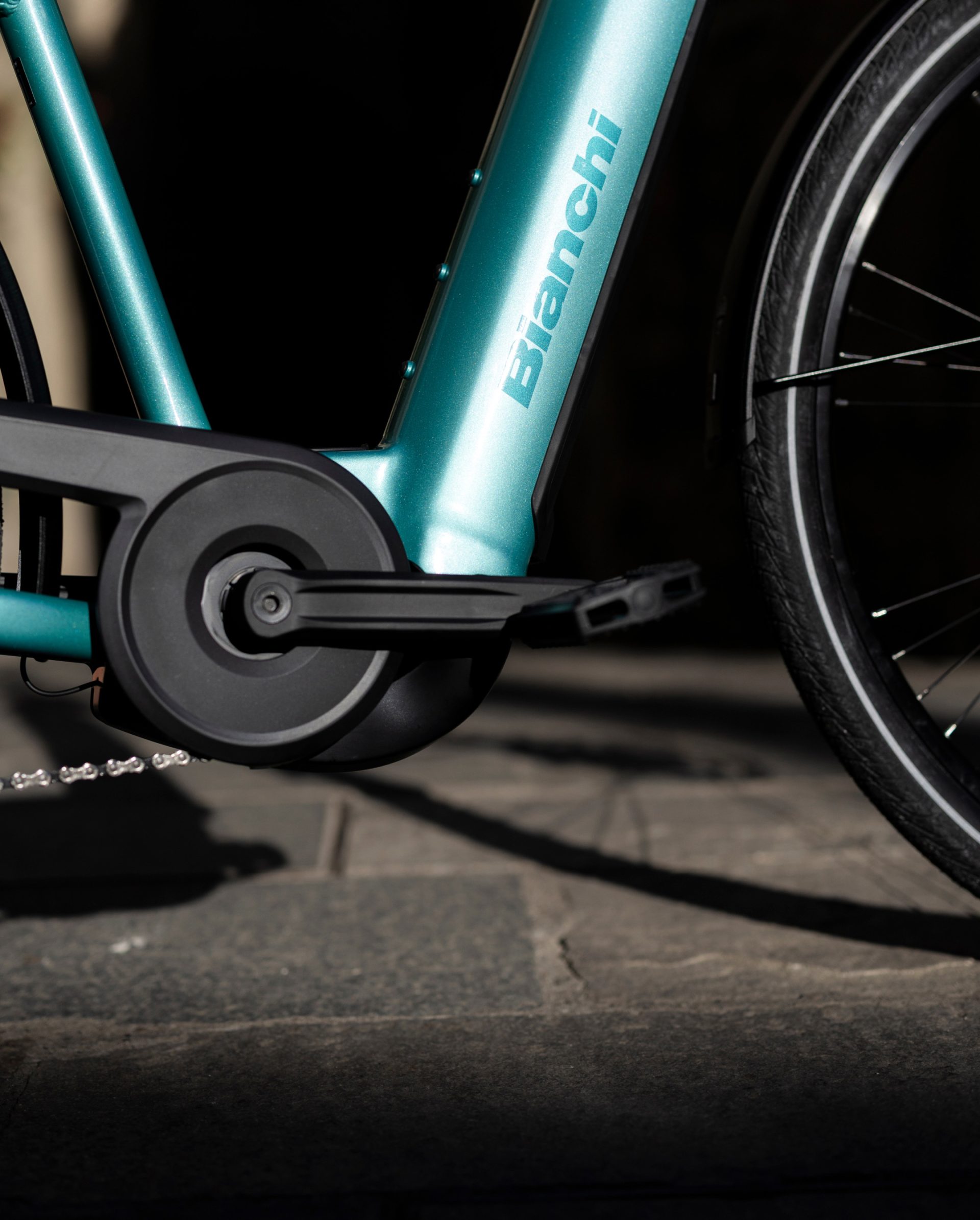

Motor
Bosch Performance Line BDU3460, 75 Nm - Purion 200
Battery
Bosch Powertube 600 Wh Horizontal
Frameset

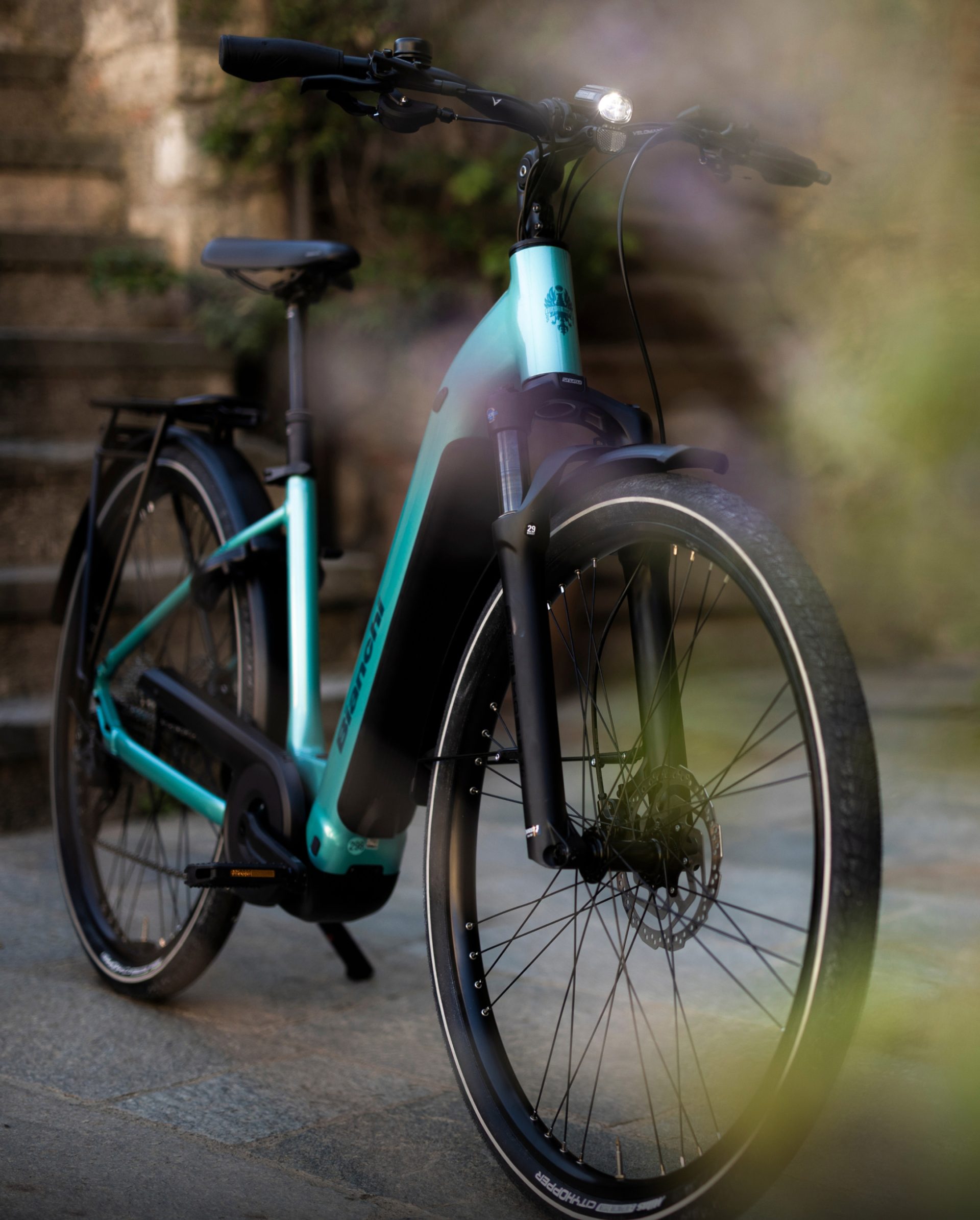

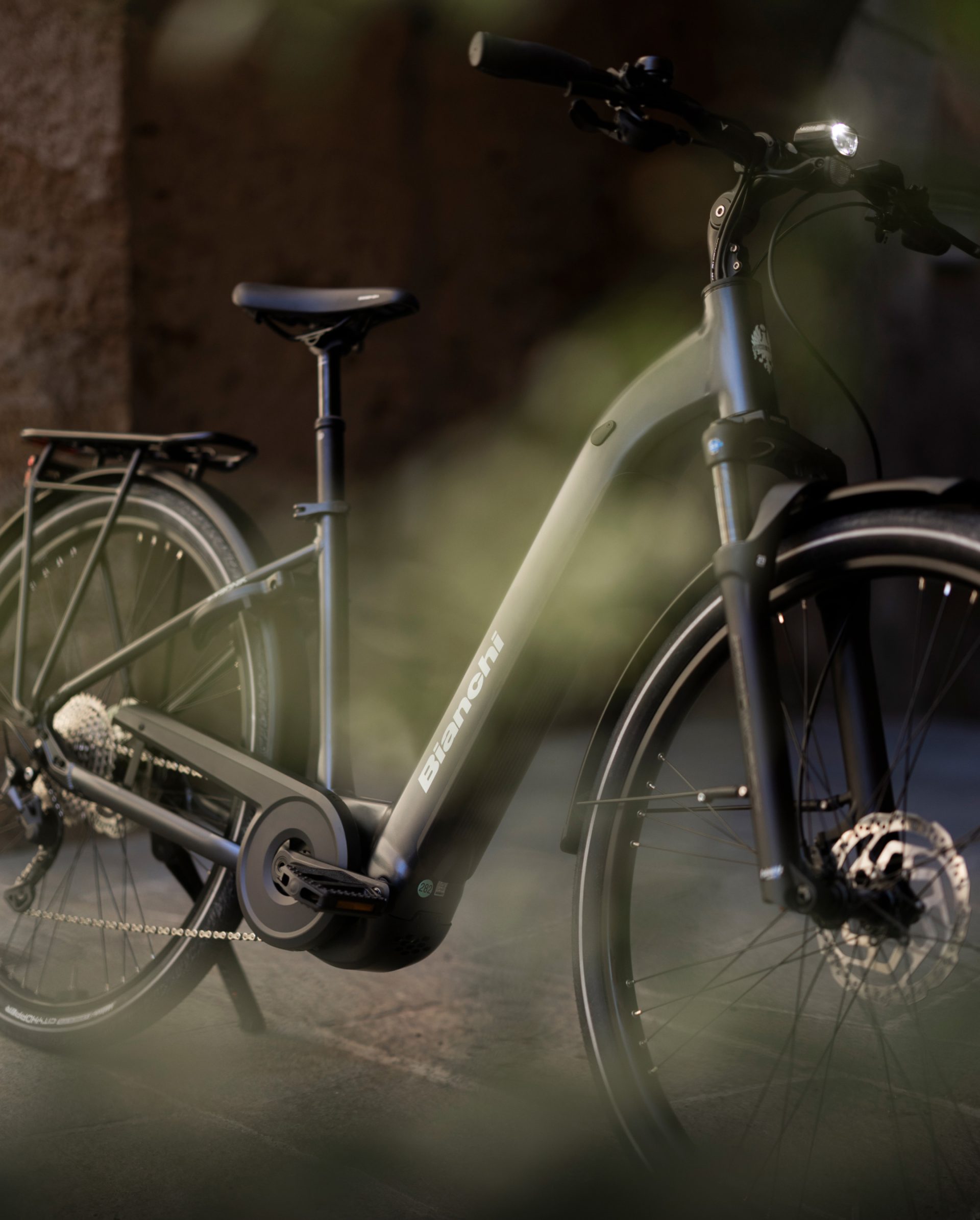

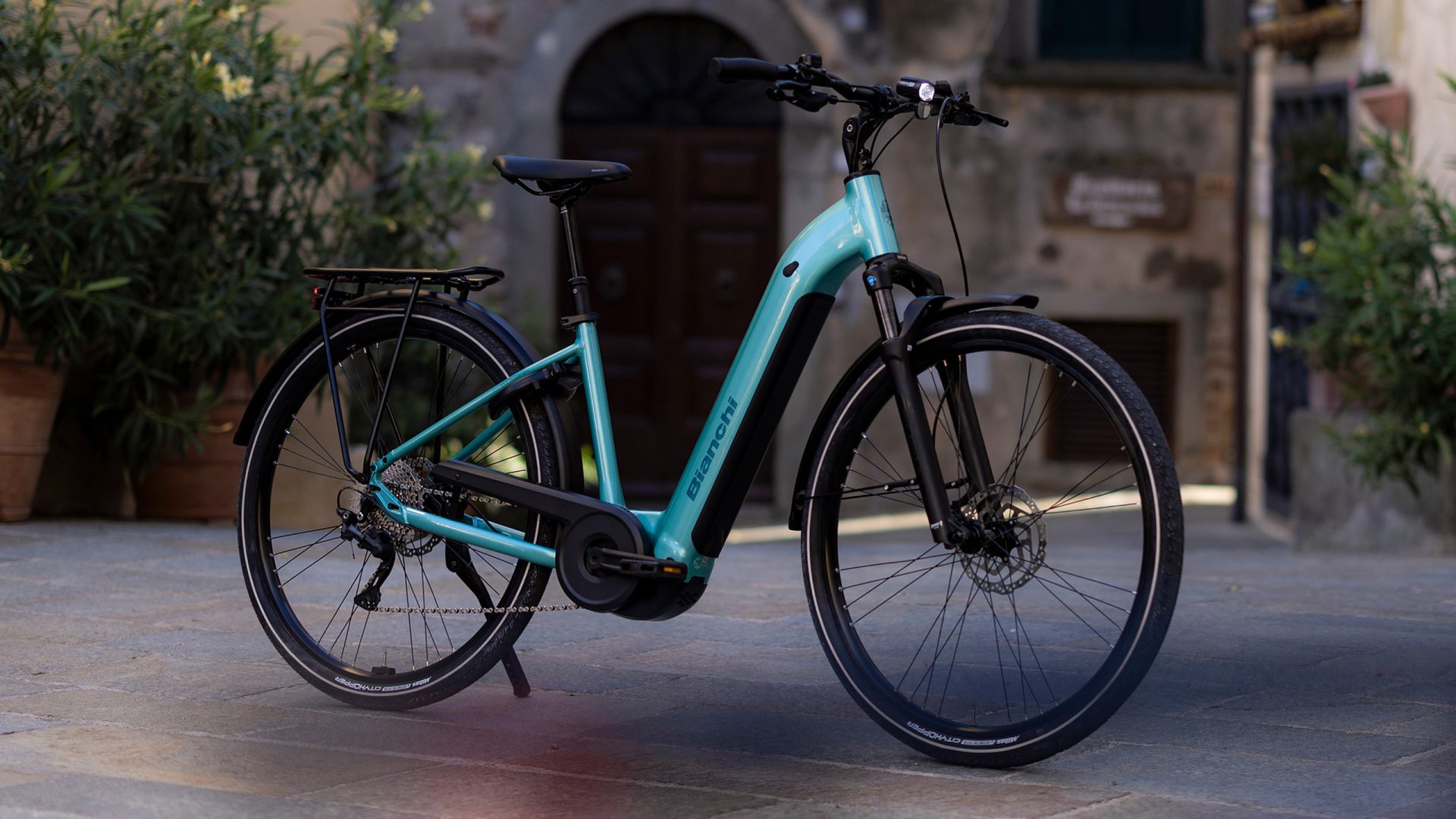

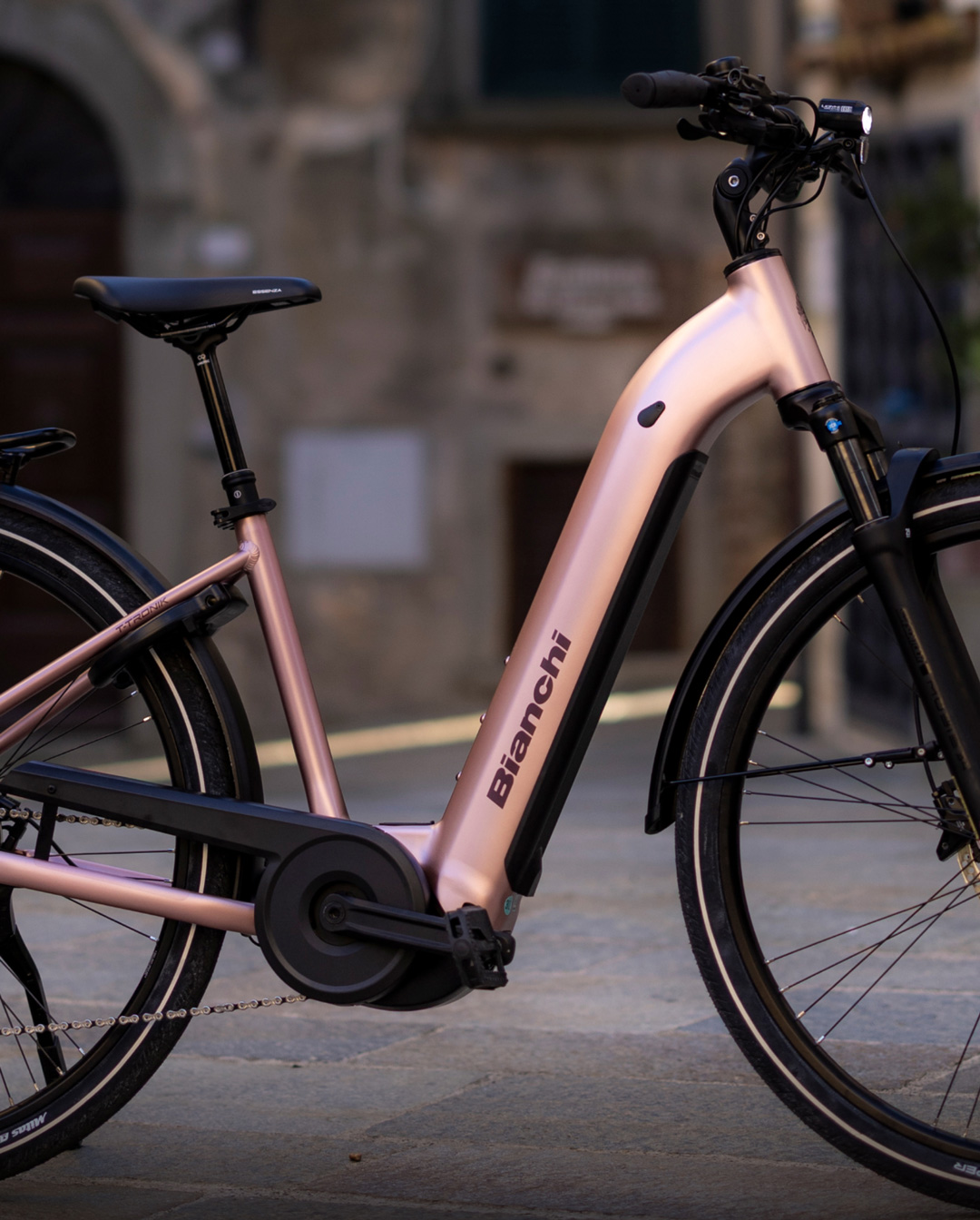

Frame
Bianchi T-Tronik C, aluminium, 9x135mm rear quick release, Post mount 160 disc brake type, Front travel 80 mm, Internal cable routing in steerer, 800 Wh battery compatible, sizes SM- MD-LG-XL
Fork

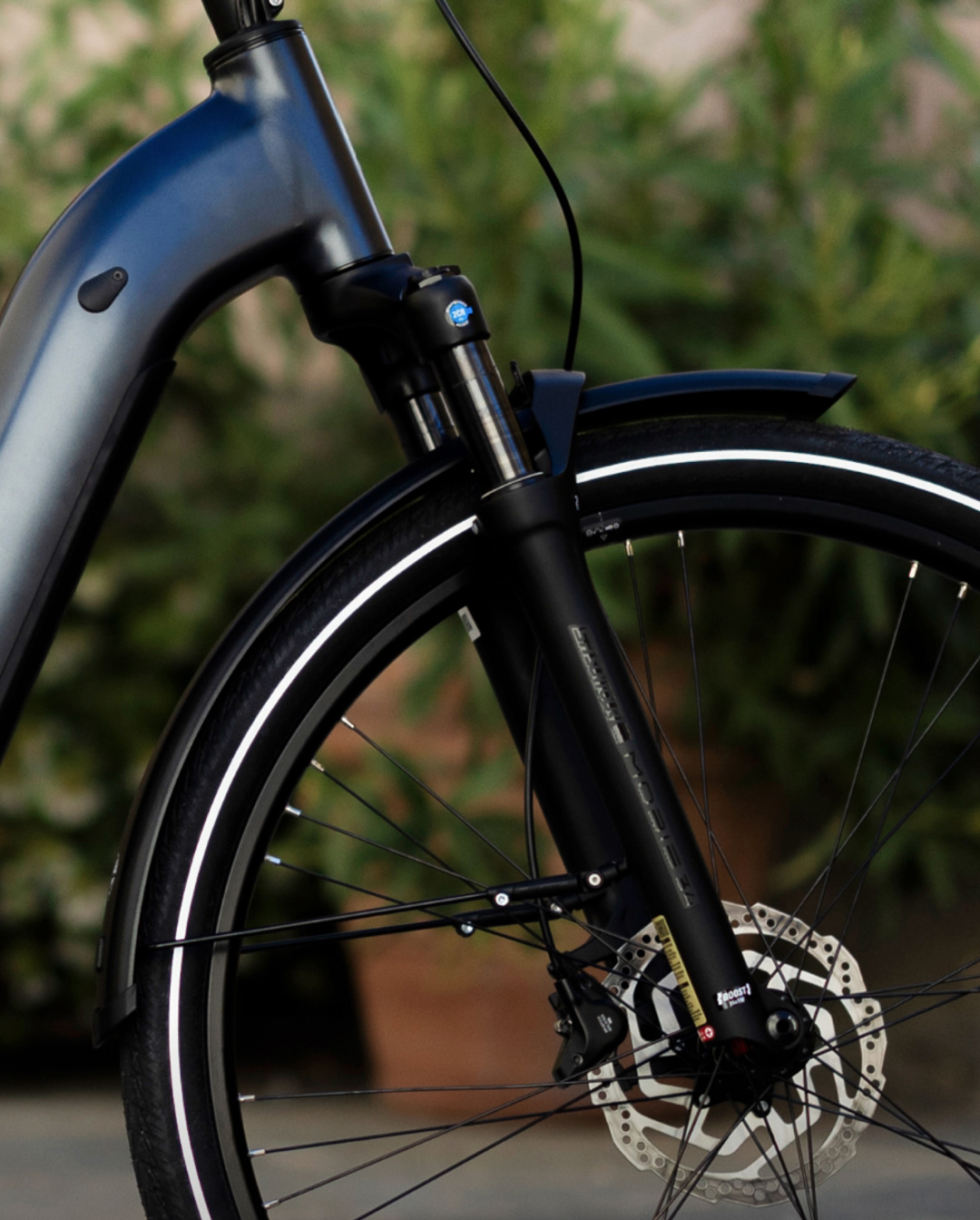

Suntour NVX32 29", Coil, 80 mm travel, Steerer tube 1,5" tapered, 32 mm stanchions, 15x110 Boost axle, Rotor: minimum 180 mm, maximum 203 mm
Headset
FSA 1.5" for tapered fork steerer, Dual side internal cable routing
Drivetrain
Shifters
Shimano Deore SL-M4100, Rapidfire Plus
Rear Derailleur
Shimano Deore, RD-M4120, 10sp, Shadow design

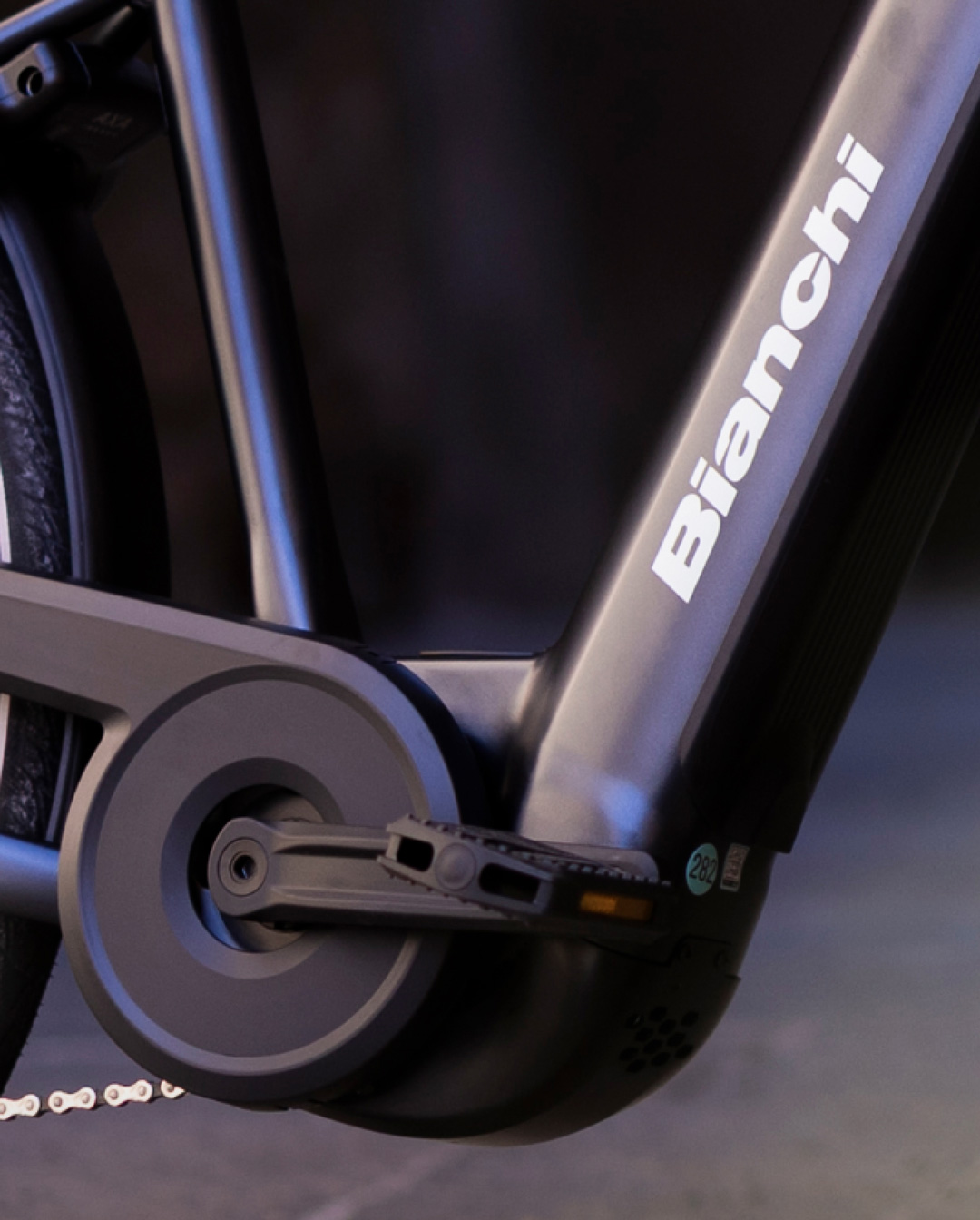

Crankset
FSA CK-320/IS, Aluminium DieCast, Crank length: 170 mm
Chain
KMC e10S EPT, Anti-Rust
Cassette
Sunrace CSMS2, 11-42T
Brakes
Brakes
Shimano Deore BR-MT410, 2 piston, resin pad
Brake Levers
Shimano Deore BL-MT401
Rotor
FRONT: Shimano SM-RT10, 180 mm / REAR: Shimano SM-RT10, 180 mm
Wheels
Wheels
Velomann 622x25, 32 hole; Front hub: Shimano TC500 Thru axle; Rear hub: Formula CL-1422 Quick Release; Spoke pattern 4x8
Tire
Rubena Cityhopper, 28"x2,00"; Antipuncture, Reflex
Cockpit
Stem
Velomann Aluminium, Adjustable, Barbore: 31,8 mm
Handlebar
Velomann Wien, Aluminium, Rise 20 mm, Barbore 31.8 mm, Backsweep 15° Size: 680 mm
Grips / Extensions
Herrmans Oxy 130 mm
Saddle
Seatpost Clamp
Ursus Alloy, Quick Release, Diameter 34,9 mm
Seatpost
Velomann Suspended 50 mm for size SM; Dropper suspended, 80 mm travel + 40 mm suspension for size MD, LG, XL
Saddle
Selle Royal Essenza
Accessories
Pedals
VP VPE-889P, w/reflectors

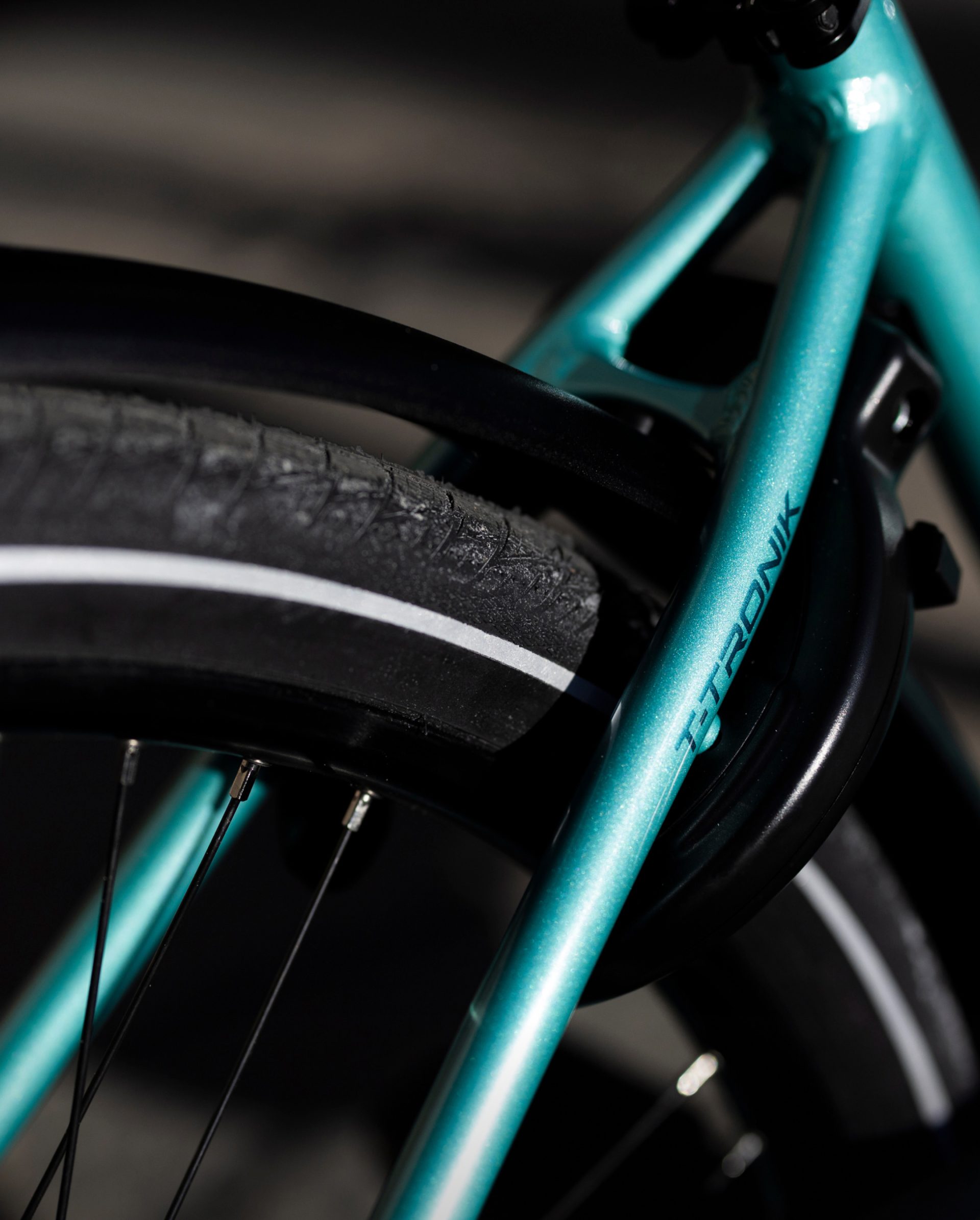

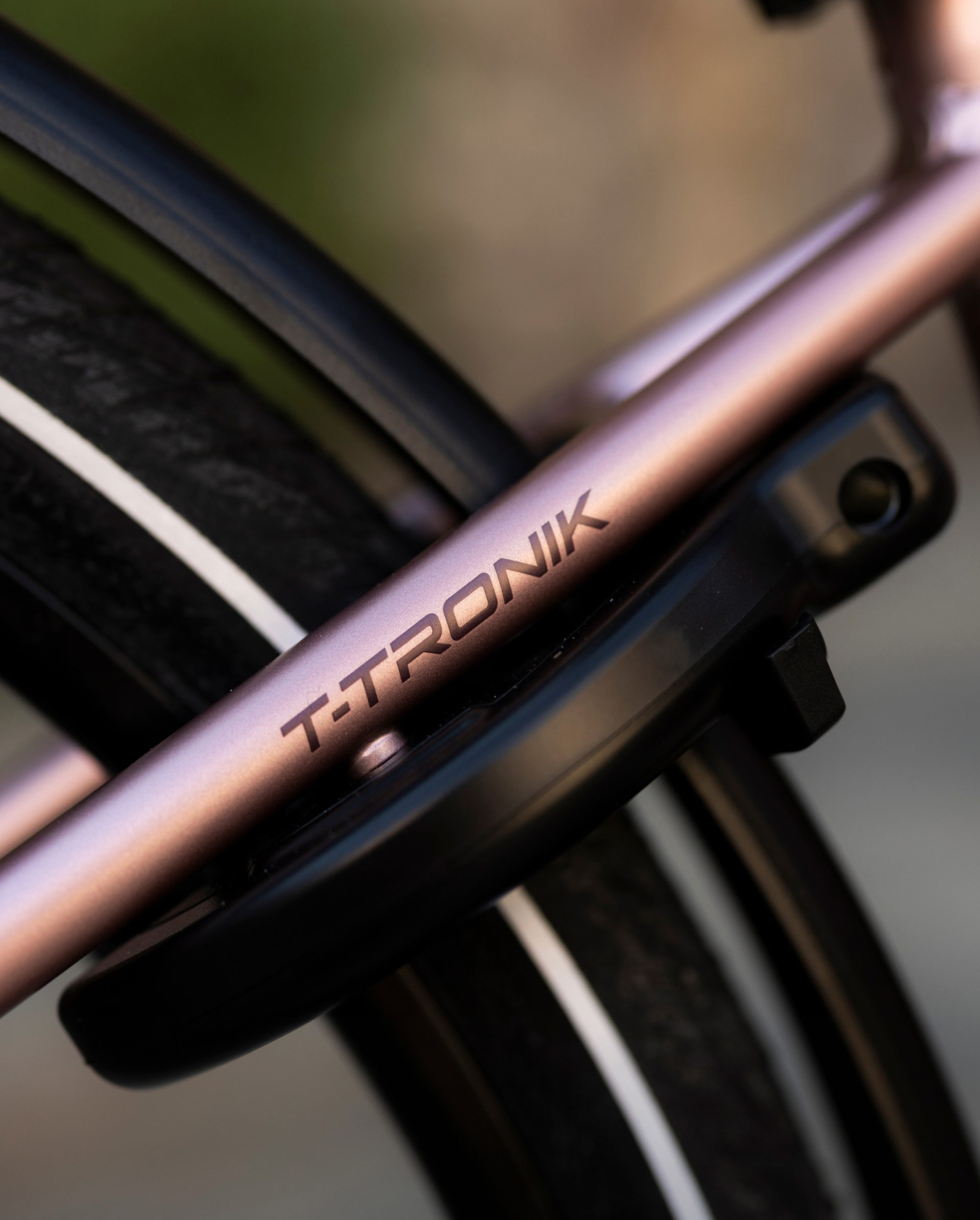

Mudguards
Marcon Primo 65, alluminium
Kickstand
Ursus MOOI PLUS, 40Kg max system weight

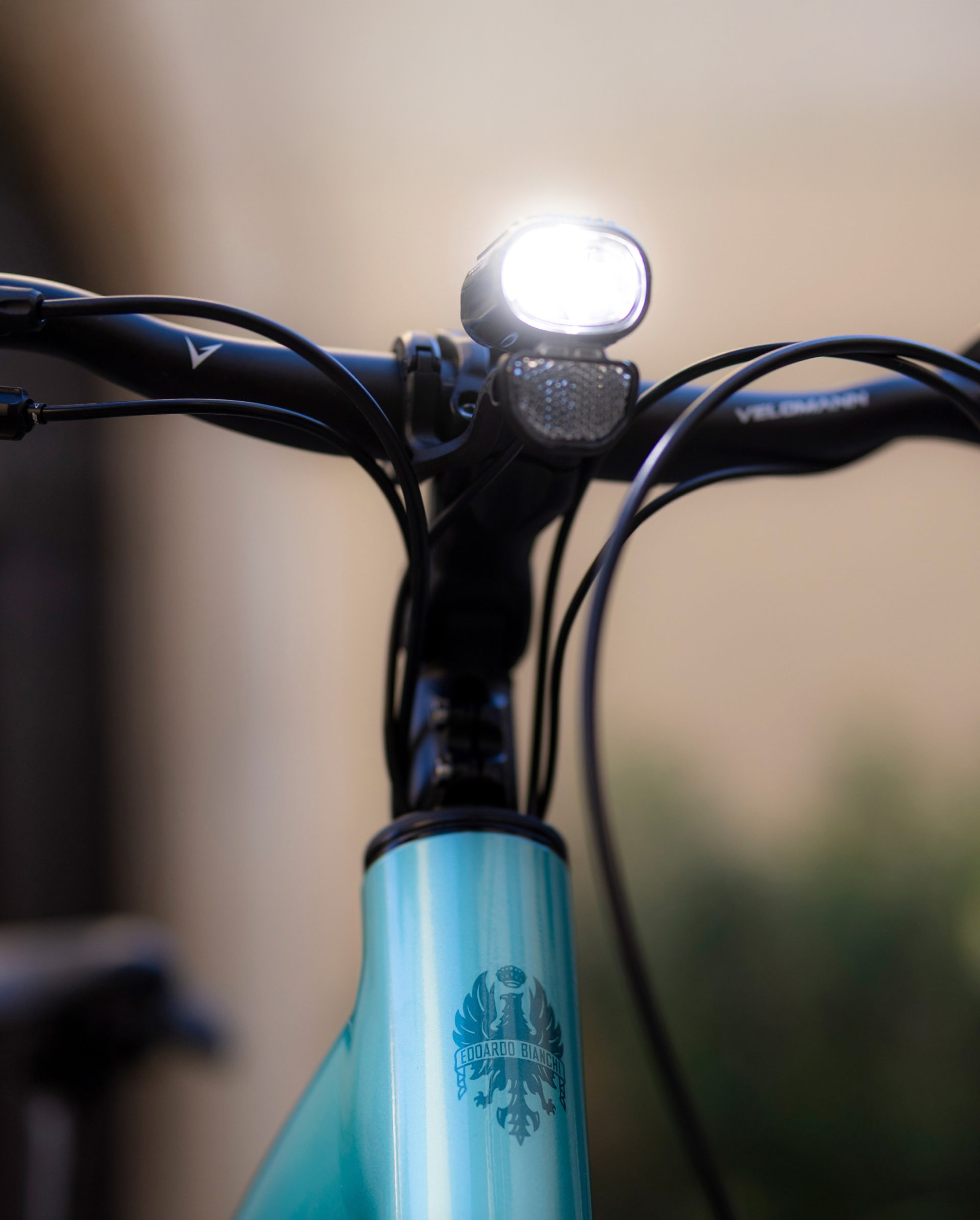

Front Light
Lezyne Mini E65, 65 lux

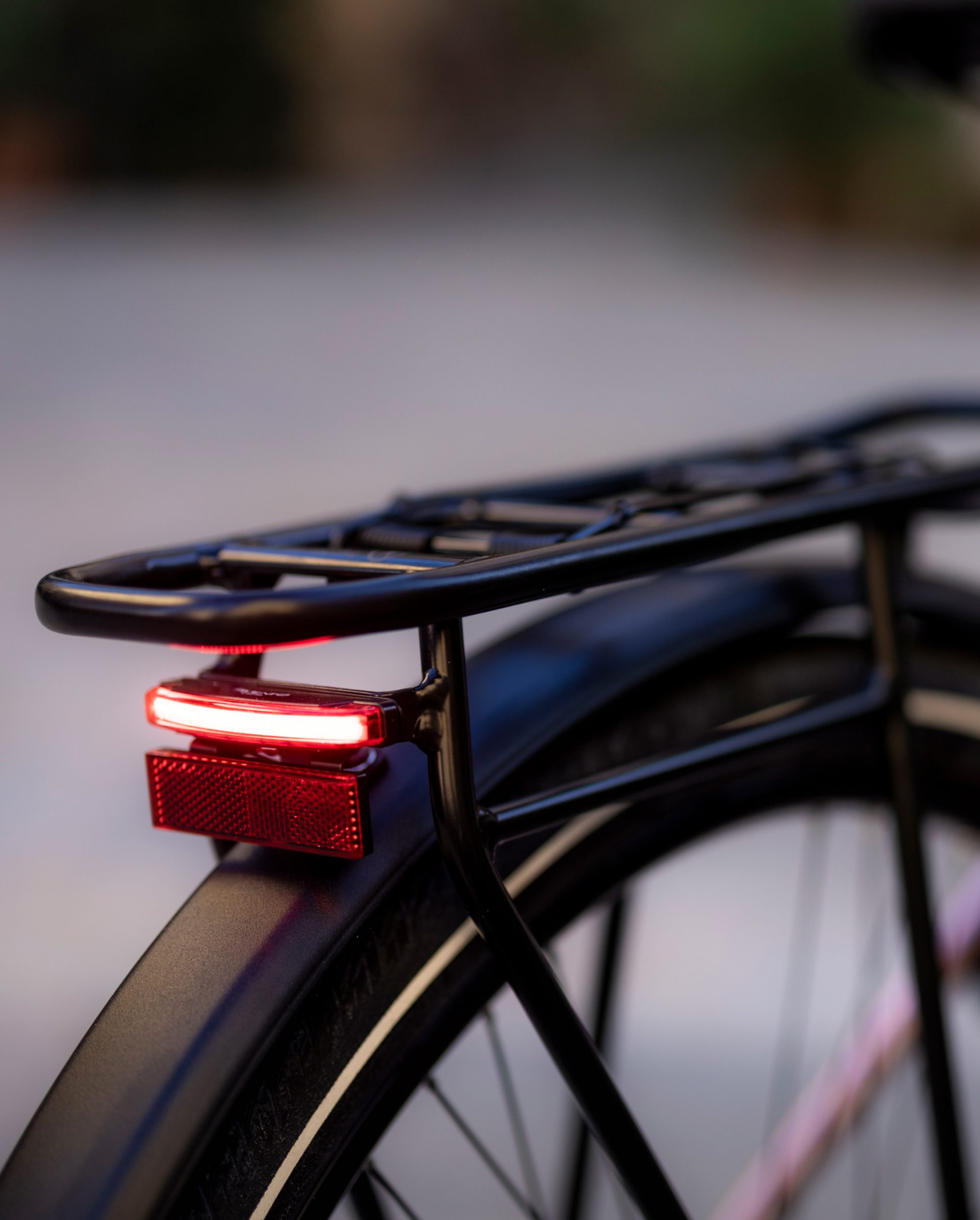

Rear Light

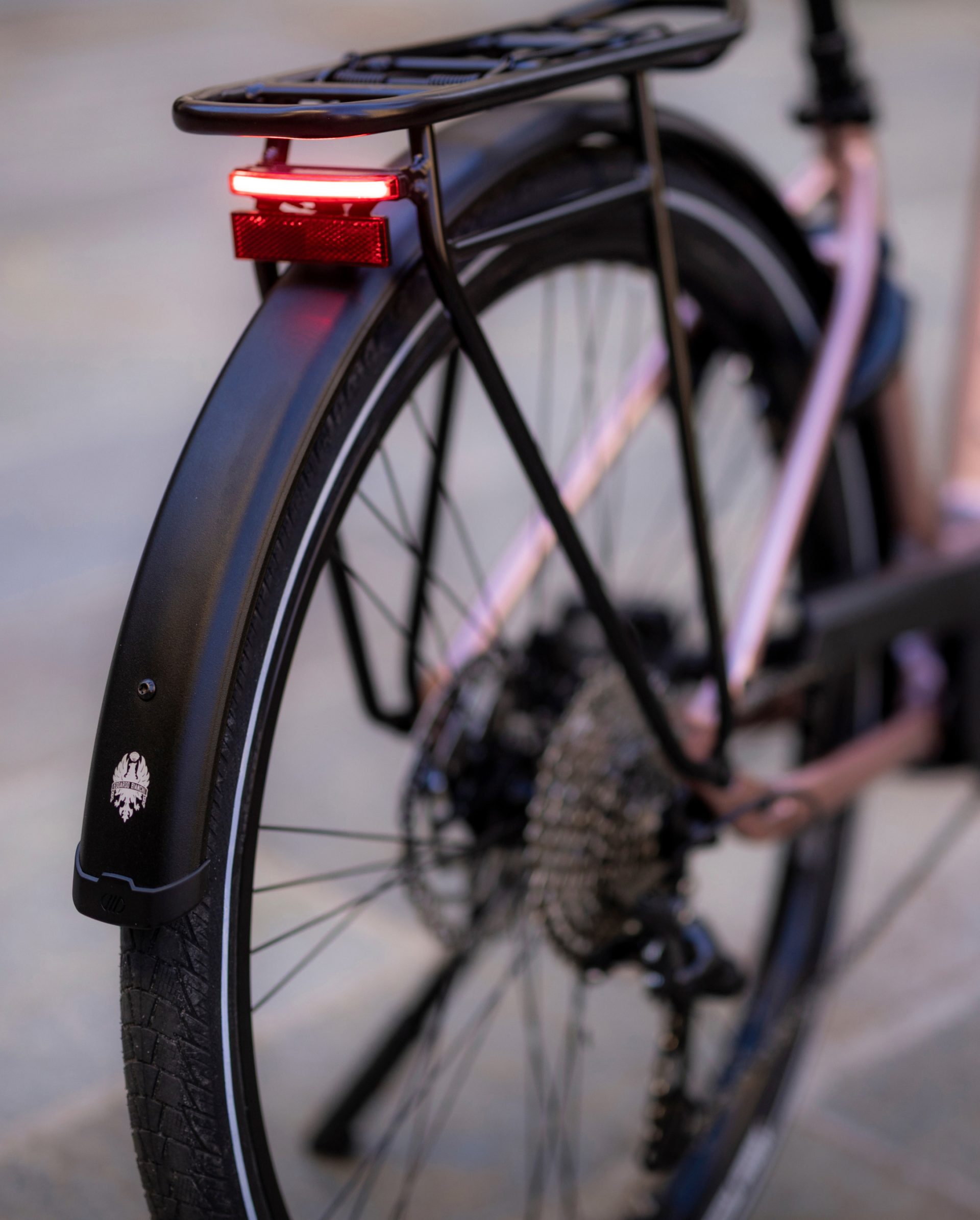

Spanninga Pimento large, w/ reflector
