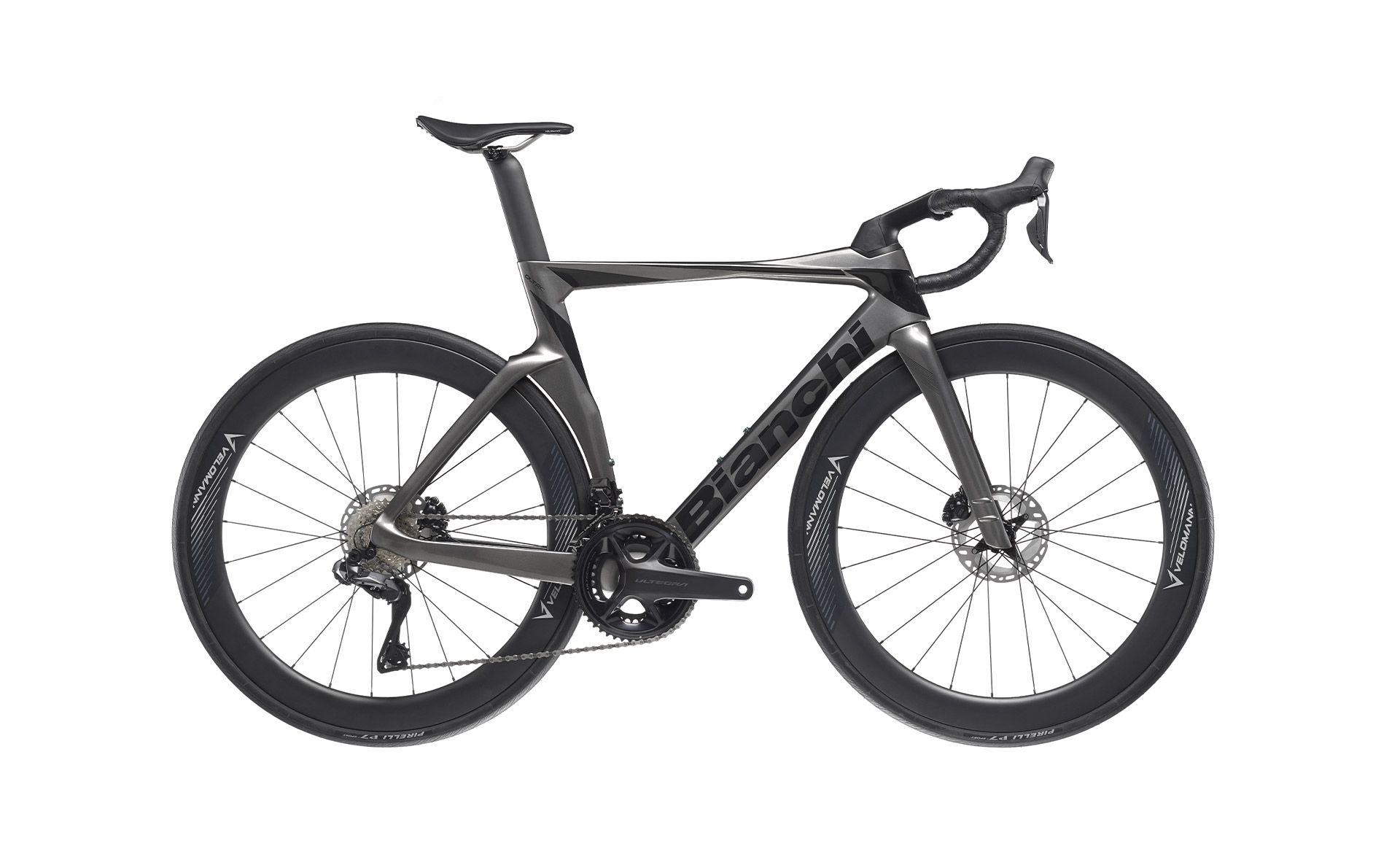

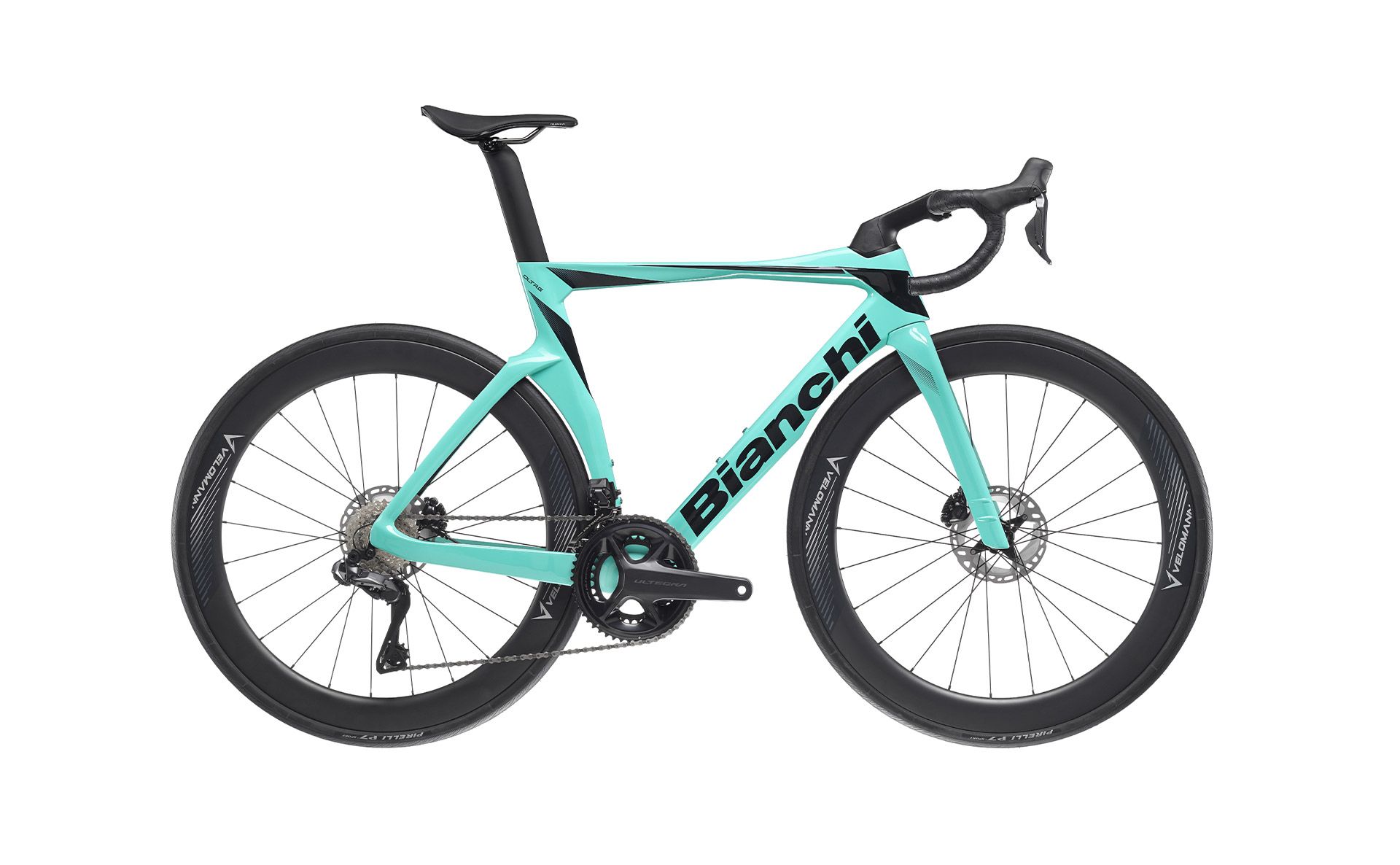

A imagem apresentada é apenas indicativa.
Os componentes e detalhes gráficos podem diferir do modelo real.
Preço de referência, pode sofrer alteração na cotação.
Oltre Zero foi projetado para pilotos experientes com necessidade de velocidade e simplicidade em estradas abertas.
Andando em estradas pavimentadas.
FRAME
Oltre Comp, carbon, disc brakes, electronic and mechanical shifting compatible, internal cable routing 1.5-1.5 headset, BB-PressFit 86,5x41, flat mount brakes, thru axle 12x142mm sizes 47-50-53-55-57-59cm
FORK
Full Carbon aero, disc brakes, integrated head 1,5", thru axle 12x100mm, compatible with 700x30 tire
HEADSET
Fsa TH-073E ACB 1.5" 51.8x40x8
SHIFTERS
Shimano Ultegra Di2 hydraulic disc brake for road, ST-R8170, BR-R8170, for 160mm rotor
REAR DERAILLEUR
Shimano Ultegra Di2 12sp, RD-R8150
FRONT DERAILLEUR
Shimano Ultegra Di2 12sp, FD-R8150
CRANKSET
Shimano, Ultegra 12sp, FC-R8100, Ultegra hollowtech 2, for rear 12- speed, 50x34T, Crank Length: 170mm-47/54cm, 172.5mm-55/59cm
BOTTOM BRACKET
Shimano, SM-BB72-41B, press fit for road, bearing, inner cover
CHAIN
Shimano, Ultegra 12 sp, CN-M8100
BRAKES
Shimano BR-R8170 Hydraulic disc brake, included in the shifter
ROTOR
Shimano center lock type w/Ice Tech, 160mm front rear
WHEELS
Velomann Carbon V50R 50mm profile, 700x21c, HG body, UD carbon fiber, tubeless ready and clincher, Internal width: 21 mm, weight per set: 1.630g
TIRE
Pirelli P7, 700 x 28c, 60TPI
STEM
Velomann Aero stem, material alloy, Oversize, 1.1/8", size: 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59cm
HANDLEBAR
Velomann Aero Compact handlebar, alloy diam. 31,8mm, reach 74mm, drop 116mm, for fully internal cable routing Size: 400mm-47~53cm, 420mm-55~59cm
GRIPS
Velo soft Microfiber tape, black
SEATPOST
Oltre Full Carbon Aero special dimension seatpost, 20mm offset, length: 280mm-47cm, 300mm-50/53cm, 350mm-55/59cm
SADDLE
Velomann Mitora139 Hyper, open flow, carbon rails, carbon-reinforced nylon, Large 139mm Lenght 250mm
SIZE | A | B1 | C | D | E | F | G | G1 | H | I | X | Y | WB |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
470 | 450 | 515 | 410 | 58 | 83 | 579 | 74.5° | 70.5° | 43 | 368 | 385 | 470 | 982 |
500 | 480 | 525 | 410 | 58 | 88 | 581 | 74.5° | 71.5° | 43 | 368 | 392 | 478 | 983 |
530 | 510 | 536 | 410 | 68 | 103 | 582 | 74° | 72° | 43 | 368 | 393 | 504 | 984 |
550 | 530 | 550 | 410 | 68 | 118 | 588 | 73.5° | 72.5° | 43 | 368 | 397 | 520 | 988 |
570 | 550 | 560 | 412 | 68 | 133 | 593 | 73.5° | 73° | 43 | 368 | 402 | 536 | 996 |
590 | 570 | 575 | 412 | 68 | 153 | 603 | 73° | 73° | 43 | 368 | 406 | 555 | 1005 |
