A imagem apresentada é apenas indicativa.
Os componentes e detalhes gráficos podem diferir do modelo real.
Preço de referência, pode sofrer alteração na cotação.
Pilotos experientes e para quem está iniciando a carreira de piloto
Andando em estradas pavimentadas.
FRAME
Sprint Disc carbon monocoque, mechanical/electronic shifting compatible, PressFit 86,5x41mm, 1.1/4"-1.1/8" HT, integrated seat clamp,full carbon dropout, flat mount, thru axle12x142mm, 32mm tires compatible, sizes 47-50-53-55-57-59-61cm
FORK
Bianchi Full Carbon Disc 1.1/4">1.1/8", thru axle 12x100mm
HEADSET
Fsa Orbit C-33, NO.44E, 1.1/8">1.1/4"
SHIFTERS
Shimano 105 ST-R7020 2x11sp, Shimano 105 ST-R7025 2x11sp smaller lever size for sizes 47-50-53cm
REAR DERAILLEUR
Shimano 105 RD-R7000 GS 11sp
FRONT DERAILLEUR
Shimano 105 FD-R7000-L
CRANKSET
Shimano 105 FC-R7000 50x34T, HollowtechII, crank length: 170mm-47/53cm, 172.5mm-55/59cm, 175mm-61cm
BOTTOM BRACKET
Shimano SM-BB71-41B, PressFit
CHAIN
Kmc X11-1 EPT finish, 11sp
BRAKES
Shimano 105 BR-R7070
BRAKELEVERS
included w/shifters
ROTOR
Shimano SM-RT70, diam. 160mm
WHEELS
Velomann VR30 alloy, 622x19C disc brake, clincher
TIRE
Vittoria Rubino IV 700x28, 60TPI, G2.0 Graphene
STEM
Velomann Alloy 6061, rise +/ - 7°, height 38mm, Oversize, 1.1/8", Ext: 70mm-44cm, 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59/61cm
HANDLEBAR
Velomann Compact, Flat Top, alloy 6061 diam. 31,8mm, reach 80mm, drop 130mm, Size: 400mm-44/53cm, 420mm-55/59cm, 440mm-61cm
GRIPS
La Spirale Ribbon cork
SEATPOST
Velomann Alloy shaft AL6061, alloy head, 15mm offset, 27,2mm, Length: 300mm-44cm, 350mm-47/61cm
SADDLE
Velomann 1285 URN, steel rails, lenght/wide 278x144mm

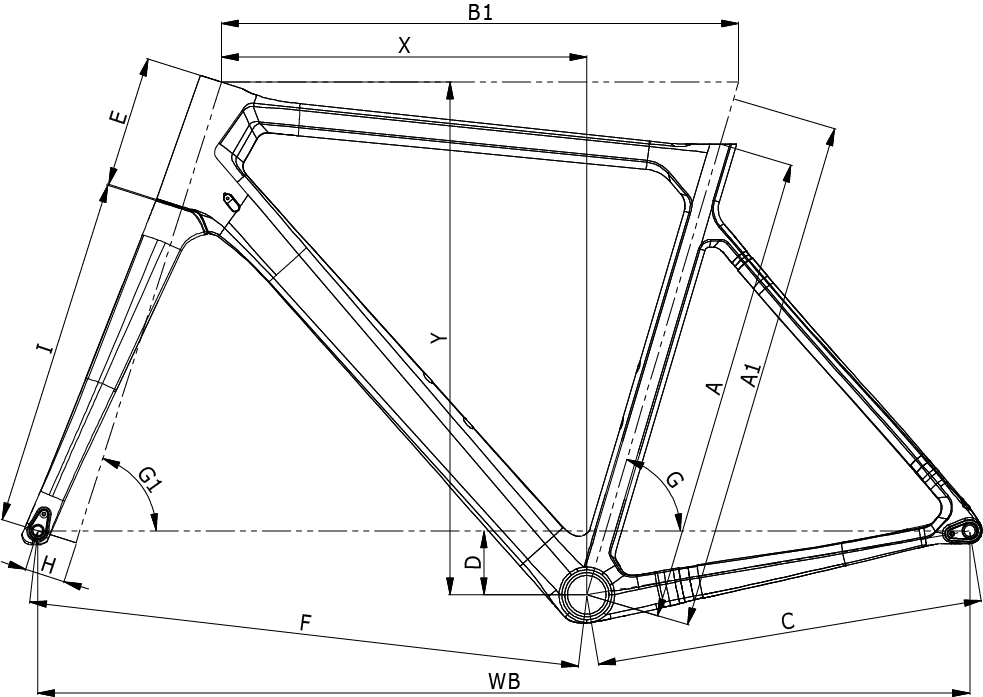

Sprint Disc Carbon | |||||||||||||
A1 | A | B1 | C | D | E | F | G | G1 | H | I | X | Y | WB |
470 | 420 | 515 | 410 | 60 | 105 | 580 | 74.5° | 70.5° | 43 | 373 | 377 | 497 | 982 |
500 | 450 | 525 | 410 | 60 | 110 | 582 | 74.5° | 71.5° | 43 | 373 | 383 | 505 | 983 |
530 | 480 | 535 | 410 | 68 | 125 | 583 | 74° | 72° | 43 | 373 | 384 | 529 | 984 |
550 | 500 | 550 | 413 | 68 | 140 | 588 | 73.5° | 73° | 43 | 373 | 388 | 545 | 991 |
570 | 520 | 560 | 413 | 68 | 155 | 593 | 73.5° | 73° | 43 | 373 | 393 | 561 | 996 |
590 | 540 | 575 | 413 | 68 | 175 | 603 | 73° | 73° | 43 | 373 | 396 | 580 | 1006 |
610 | 560 | 585 | 415 | 68 | 195 | 607 | 72.5° | 73° | 43 | 373 | 397 | 599 | 1012 |
