MOTOR UNIT
MOTOR
Ebikemotion X35 Plus 250W motor unit, iWOC One remote control, BLE and ANT+ compatible
BATTERY
Ebikemotion X35+ 250Wh
FRAMESET
FRAME

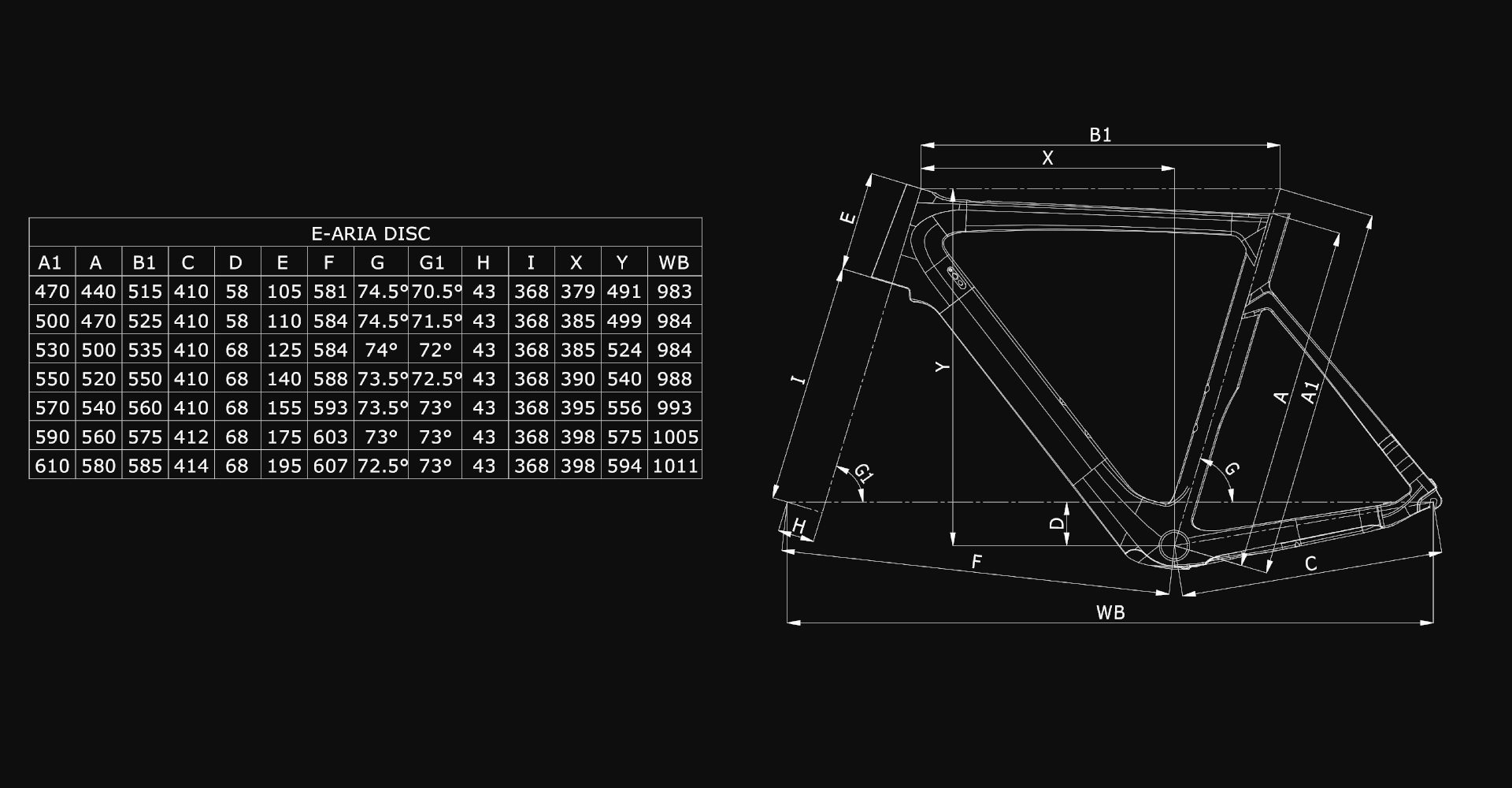

Aria E-Road carbon, mechanical/electronic shifting compatible, PressFit 86,5x41mm BB, head tube 1.1/4"-1.1/8", integrated seat clamp, full carbon dropout, flat mount, QR system, OLD 135mm, sizes 47-50-53-55-57-59-61cm
FORK
Bianchi Full Carbon Disc 1.1/4">1.1/8", thru axle 12x100mm
HEADSET
Fsa Orbit C-33, NO.44E, 1.1/8">1.1/4"
DRIVETRAIN
SHIFTERS
Shimano Ultegra ST-R8020 2x11sp, hydraulic disc brake, Shimano Ultegra ST-R8025 2x11sp, smaller lever size for sizes 47/53cm
REAR DERAILLEUR
Shimano Ultegra RD-R8000 GS 11sp
FRONT DERAILLEUR
Shimano Ultegra FD-R8000
CRANKSET
Shimano Ultegra FC-R8000 50x34T, Hollowtech II, Crank Length: 170mm-47/53cm, 172.5mm-55/59cm, 175mm-61cm
BOTTOM BRACKET
Shimano SM-BB72-41B
CHAIN
Shimano Ultegra CN-HG701-11, 11sp
CASSETTE
Shimano 105 CS-R7000, 11-12-13-14-16-18-20-22-25-28-32T
BRAKES
BRAKES
Shimano BR-R8070
BRAKELEVERS
included w/shifters
ROTOR
Shimano SM-RT86, diam. 160mm
WHEELS
WHEELS
Vision Trimax Alloy disc, c/unità motore mozzo posteriore Ebikemotion X35
REARHUB
Ebikemotion X35 Plus motor unit
TIRE
Vittoria Rubino IV 700x28, 60TPI, G2.0 Graphene
COCKPIT
STEM
Velomann 3D Forged alloy 2014, raise - 6°, height 38mm, 1.1/8", Ext: 90mm-48/50cm, 100mm-52/54cm, 110mm-56cm, 120mm-58cm
HANDLEBAR
Reparto Corse Aero Compact, alloy 6061 diam. 31,8mm, reach 74mm, drop 116mm, Size: 400mm-44/53cm, 420mm-55/59cm, 440mm-61cm
GRIPS
La Spirale Ribbon cork
SADDLE
SEATPOST
Full Carbon Aero special dimension, special Clamp type with alloy head adjustable and reversible +/- 35mm; lengh: 300mm-47/50cm, 350mm-53/61cm
SADDLE
Velomann 1285 URN, steel rails, lenght/wide 278x144mm
