DESENHADO PARA

Trilhas off-road desafiadoras. Para e-racer hardcore ou para exploração e diversão.

CONDIÇÕES DE CONDUÇÃO

Andar em terrenos acidentados com quedas inferiores a 122 cm.

MOTOR UNIT

MOTOR

Shimano EP8 drive unit, 250W, 85Nm

BATTERY

720Wh integrated battery

FRAMESET

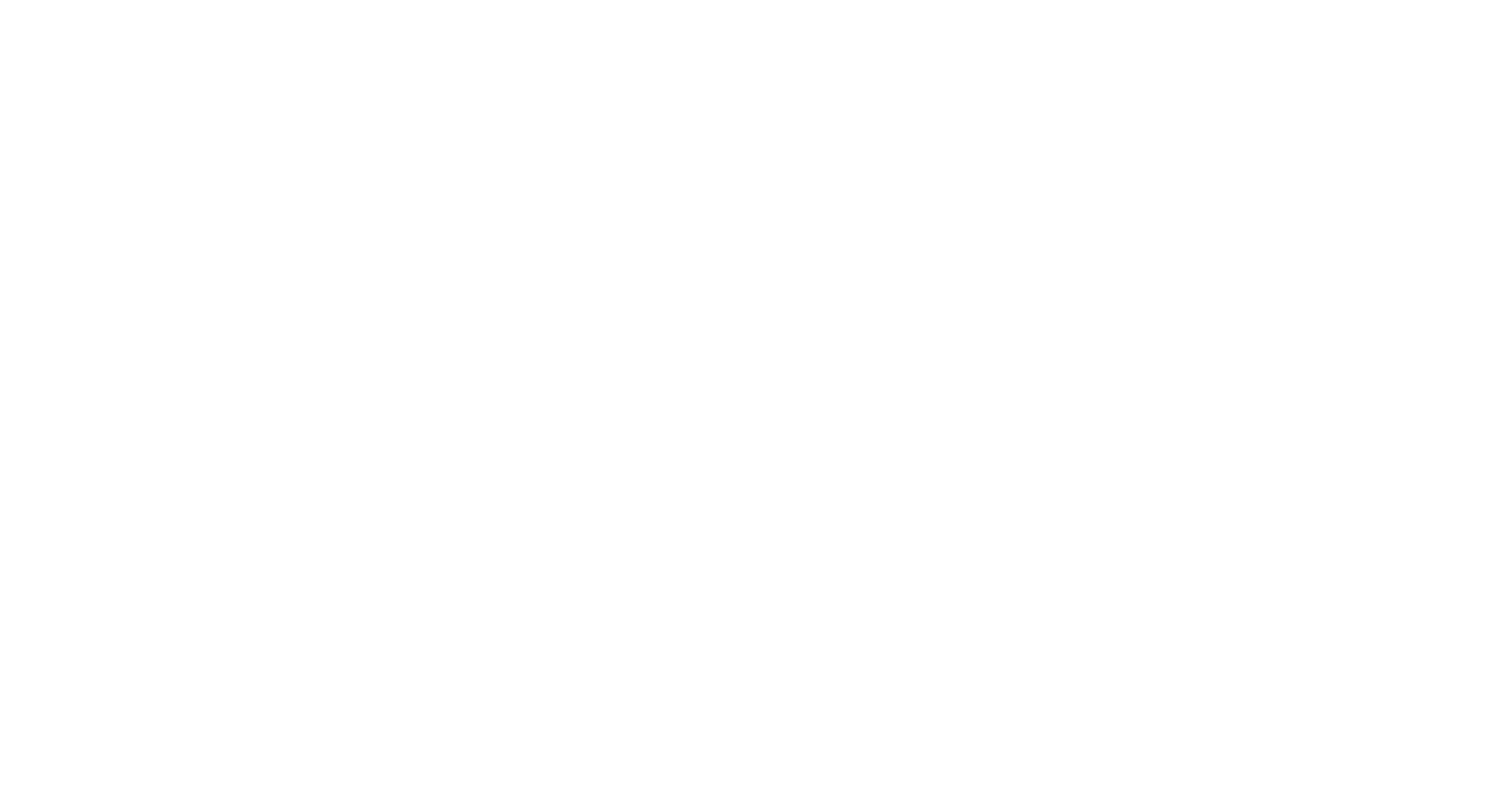

FRAME

Bianchi e-SUV Carbon sizes: 43, 48, 53 - 12x148 mm thru axle dropouts - Post mount 180 disc brake type - 1.5" tapered head tube - seatpost diam. 31,6mm - 150mm travel front & rear - compatible to 160mm travel front

FORK

RockShox ZEB Select 29", 150mm travel, 15x110 BOOST, minimum 200mm rotor, maximum 220mm rotor, 44mm rake, 63mm crown, DebonAir+, extl rebnd, 38mm stanchions

REARSHOCK

RockShox Deluxe Select +, DebonAir Linear, Damer Type RL, Compression Tune M, Lockout Force 430, external rebound adjustment, Volume reducer 0 Neg 1 Pos

HEADSET

FSA NO.55R/558 1.5"

DRIVETRAIN

SHIFTERS

SRAM GX EAGLE, 1x12sp

REAR DERAILLEUR

SRAM GX EAGLE, 12sp

CRANKSET

Shimano, FC-EM600, 165MM - SRAM chainring XSYNC2 34T

BOTTOM BRACKET

Included w/motor unit

CHAIN

Sram NX Eagle 12sp

CASSETTE

SRAM PG1230, 12sp, 11-13-15-17-19-22-25-28-32-36-42-50T

BRAKES

BRAKES

Shimano BR-M6120, 4 pistons caliper

BRAKELEVERS

Shimano BL-M6100

ROTOR

Shimano SM-RT64 ant. diam. 203mm - Shimano RT-EM600 post. diam. 203mm

WHEELS

WHEELS

Dt Swiss H1900 Spline Front: 29", 30mm width, 15x110TA - Rear: 27,5", 35mm width, 12x148TA

TIRE

Front: Kenda Hellkat 29x2.6 - Rear: Regolith 27,5x2.8

COCKPIT

STEM

Velomann +/-0°, diam.35mm, ext: 50mm

HANDLEBAR

Velomann, width 780mm, diam.35mm, rise 20mm, backsweep 9°

GRIPS

T-One Rock T-GP34

SADDLE

SEATPOST

Velomann, diam.31,6mm, 125mm travel for size 43, 150mm travel for size 48, 53

SADDLE

Fi`zi:k Alpaca Terra, S alloy rail, 249x145mm

ACCESSORIES

MUDGUARDS

Front & rear integrated mudguards

FRONTLIGHT

Spanninga integrated front light

REARLIGHT

Spanninga integrated rear lights
