DESENHADO PARA

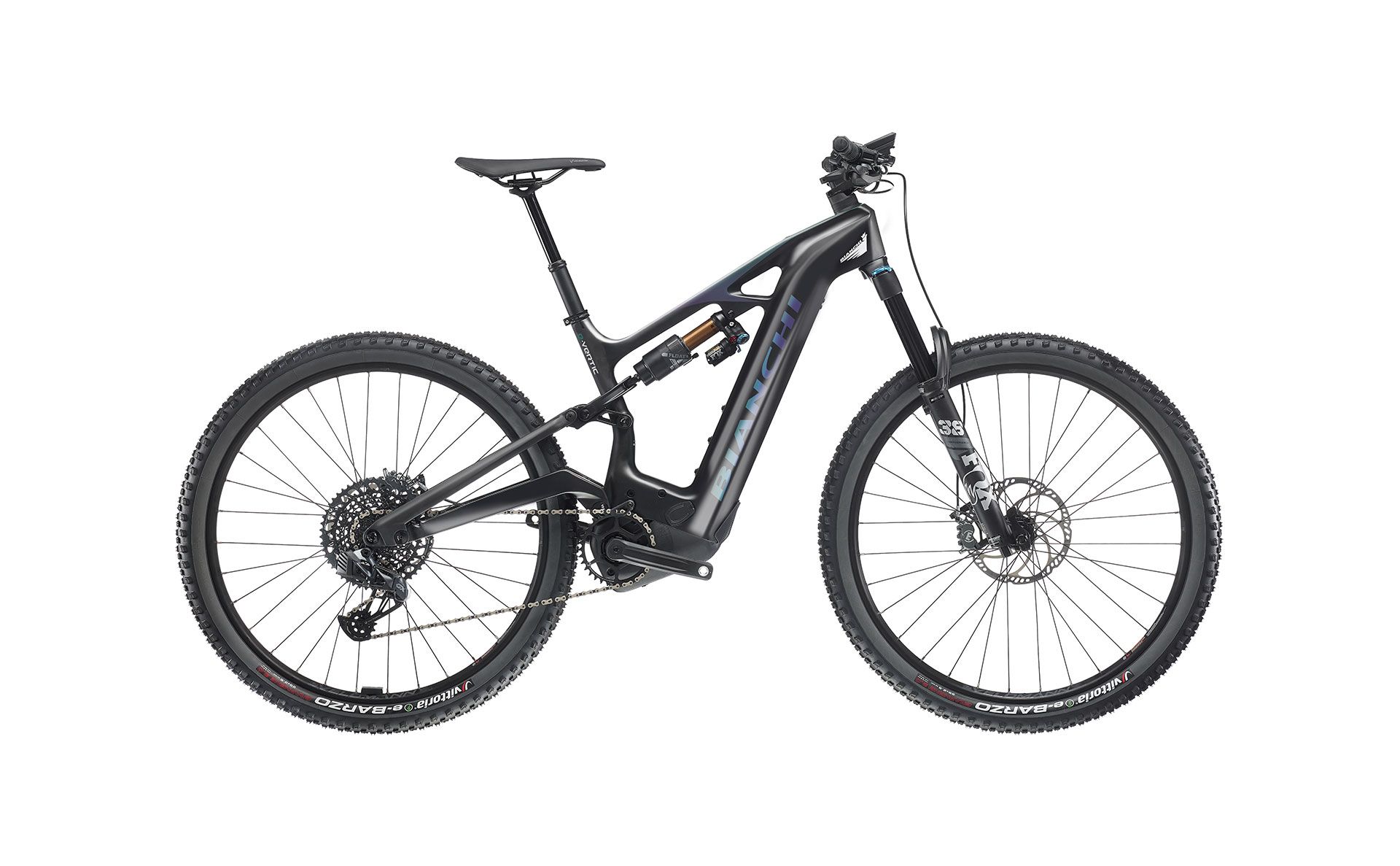

Um enduro e-MTB pronto para enfrentar qualquer desafio que sua pista apresente: singletrack S3, S4 ou S5? Sua paixão não conhecerá limites.

CONDIÇÕES DE CONDUÇÃO

Andar em terrenos acidentados com quedas inferiores a 122 cm.

MOTOR UNIT

MOTOR

Bosch Performance CX BES3 motor unit

BATTERY

Powertube 750wh integrated battery, w/Kiox display

FRAMESET

FRAME

e-VERTIC FX-Type Pro FULL SUSPENDED CARBON/ALU sizes: 43-48-53 - 160 mm front travel - 65 mm rear travel - HT 1,5"" tapered - Seatpost 31,6 mm - 12x148 mm dropouts - Set dropout (sx+dx) TA 148mm external derailleur + SRAM UDH

FORK

Fox, 38, A, FLOAT, 29in, P-S, 160, Grip, 3Pos, 15QRx110, 1.5 T, 58HT, 44mm Rake

REARSHOCK

Fox, FLOAT X2, 230, 65, 0.3 Spacer x2, CL001, ECR010, Rezi CM

HEADSET

Acros 1""1/8 top / 1,5"" bottom - bearings Starnut, Alloy Topcap

DRIVETRAIN

SHIFTERS

Sram EC GX AXS EAGLE RH 2BUTTON MMX

REAR DERAILLEUR

Sram RD GX1 AXS LUNAR WITH BATTERY COVER

CRANKSET

Sram EAGLE 34T BOSCH GN4 DM ST EMTB B148 CK-320 FSA E-Bike Diecast Crankset - ISIS / 165mm / w/o crank bolt

BOTTOM BRACKET

included in the motor

CHAIN

Sram CN GX EAGLE 126LI PWR.LCK 12sp

CASSETTE

Sram CS XG 1275 EAGLE 10-52T

BRAKES

BRAKES

MT7 (banjo 4 piston caliper) Magura Shiftmix 4 for left-front, I Spec-EV compatible Magura Shiftmix 3 for right-rear Adaptor QM44 (180 - 203)

ROTOR

Magura Centerlock - 203 mm

WHEELS

REARHUB

Formula, DISC HUB, CENTER LOCK, J-BEND, THRU-AXLE, W/O QR, FOR SRAM XD DRIVER 11-SPEED, 4 SB, 32h

FRONTHUB

Formula, DISC HUB, CENTER LOCK, J-BEND, THRU-AXLE, W/O QR, 15x110, 32h, 2 SB

TIRE

Vittoria e-Barzo 29x2.6 XC-Trail

COCKPIT

STEM

Velomann, 50 mm, 35 mm, 1"1/8

HANDLEBAR

Velomann, width 780mm diam.35mm, rise 20mm, backsweep 9°, double butted AL7050

GRIPS

T-One Rock T-GP34 single lock grip , TPR

SADDLE

SEATPOST

Alpha1 Series - 31.6 mm - Remote RM07 I-Spec EV - 1800 mm cable length - Velomann logo 125 mm - for size M 150 mm - for size L/XL

SADDLE

Velomann, manganese rail, lenght 277mm x width 144mm
